833-3577 CB-FALCON SYSTEM OPERATOR INTERFACE
750-241 7 65-0296—01

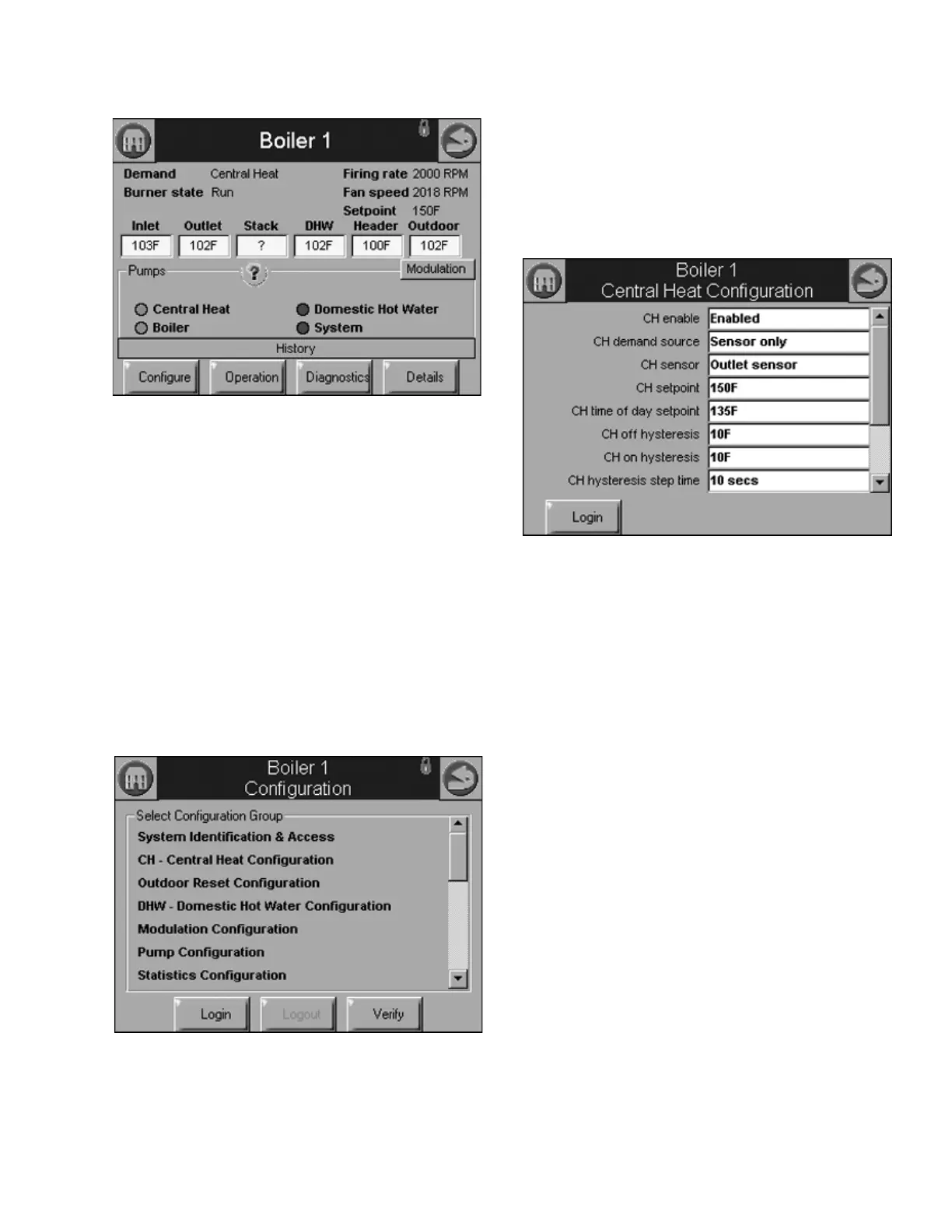

Fig. 7. 833-3639 summary status page.
Configuration Page
The configuration page allows the user to view and set
parameters that define how the 833-3639 functions in the
hydronic heating system.
Configuration parameters for any 833-3639 connected in the
Global Modbus™ network can be accessed from the 833-
3577. Press the 833-3639’s button on the Home page to
access the Status page. Pressing the Configure button on the
833-3639 status page starts a configuration session with the
833-3639.
The configuration page contains a menu of parameters
grouped into functional areas that the user selects for
configuration (see Fig. 8). See Table 42 on page 43 for all
parameters available for configuration. If some parameters
are not visible, they have been made invisible by the OEM.
Fig. 8. Configuration menu page.
No specific order for configuring the 833-3639 is required. All
parameters are enabled for editing, though some may not be
applicable (e.g., a configuration parameter may disable an
833-3639 feature). Selecting a parameter group from the
menu displays parameters exclusively applicable for the
functional group on the page (see Fig. 9). These parameters
can be edited, and when the user is finished, control returns
back to the configuration menu page.
Fig. 9. Sample configuration page.
Each parameter is displayed in its group. If there are more
parameters than will fit on the screen, a vertical scroll bar
allows the user to scroll up and down to view all parameters.
The parameter name is displayed on the left and the current
setting is displayed in the text box on the right.
Configuration Password
Any user can view the configuration parameters (default
mode). No access-level password is required to view the
parameters.
To change a parameter, a valid configuration password for
that parameter’s level must be entered by the user before the
parameter can be changed (if required). The password need
only be entered once while the user remains on the
configuration pages. Leaving the configuration pages ends
the scope of the password entry.
The user is notified that a new password is needed upon the
first attempt to change a parameter (or until a password is
entered successfully)—see Fig. 10. The user can continue
viewing the configuration parameters regardless of whether a
password is entered successfully.
