833-3577 CB-FALCON SYSTEM OPERATOR INTERFACE
65-0296—01 28 750-241
MONITORING
Monitoring of the hydronic system is accomplished through
the system status and detail status pages. The detail status
page is shown below.

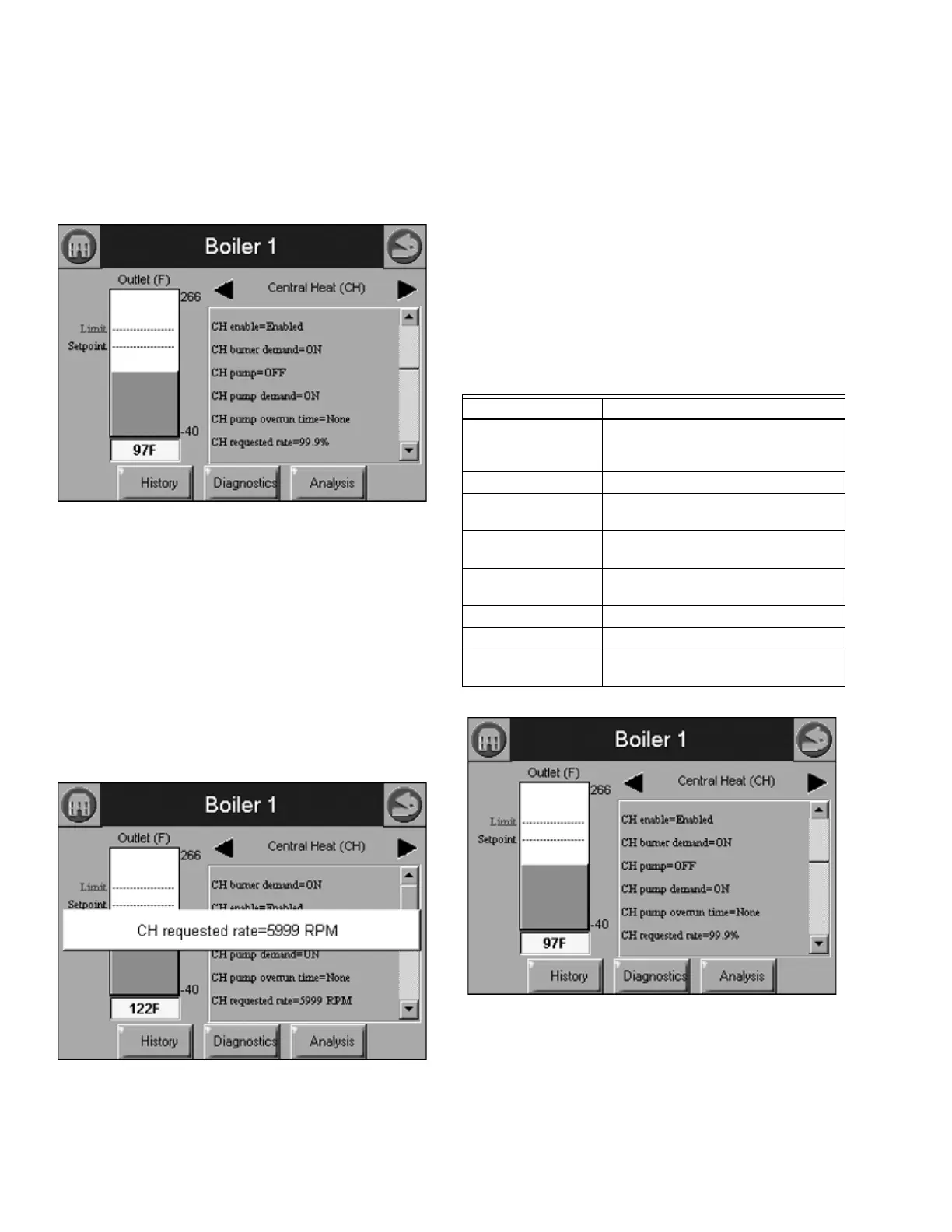

Fig. 60. 833-3639 detail status page.
Status information on the detail status page is organized into
groups and displayed on the page one group at a time. The
user moves from one group to another using the left and right
arrow buttons.
Status data on the detail status page is displayed in a menu
for the group that is currently displayed. If more status items
exist in the group than will fit on the screen, a vertical scroll
bar allows the user to see all status data. If the user selects a
line of status data in the menu, it will “explode” in bigger, more
easily readable text, as show in Fig. 61. Additional information
about Status data and groups that are displayed are provided
in the 833-3639 Status section of this document.
Fig. 61. 833-3639 “exploded” detail status.
The 833-3577 can direct the 833-3639 to start or stop its
burner control function. The user is required to enter the
installer password, if not already entered, before the burner
control can be stopped or started.
The user can view 833-3639 trend analysis from this page
(see “Trend Analysis Page” on page 13 for more details).
833-3639 Status
Data in Table 24–38 are displayed on the 833-3639 status
page. A complete list of Status tables can be found in Table 43
on page 52.
The CH status data shown in Table 24 displays first when the
CH heating loop is selected on the Home page.
Fig. 62. CH Status menu (top).
Table 24. CH Status.
Data Comment
Demand source CH, DHW, Lead Lag, or Frost
Protection (parameter that has current
priority)
CH status Disabled, Normal, Suspended
Outlet sensor state None, Monitor, Open, Short, Alarm
(None=no outlet sensor)
Outlet temperature Outlet temperature (same as bar
graph)
Modulation setpoint CH setpoint based on TOD setting.
Outlet high limit Yes or No
CH pump On or Off (CH pump switch).
CH pump overrun
time
Count down of CH pump overrun
To Next Page
