833-3577 CB-FALCON SYSTEM OPERATOR INTERFACE
750-241 13 65-0296—01

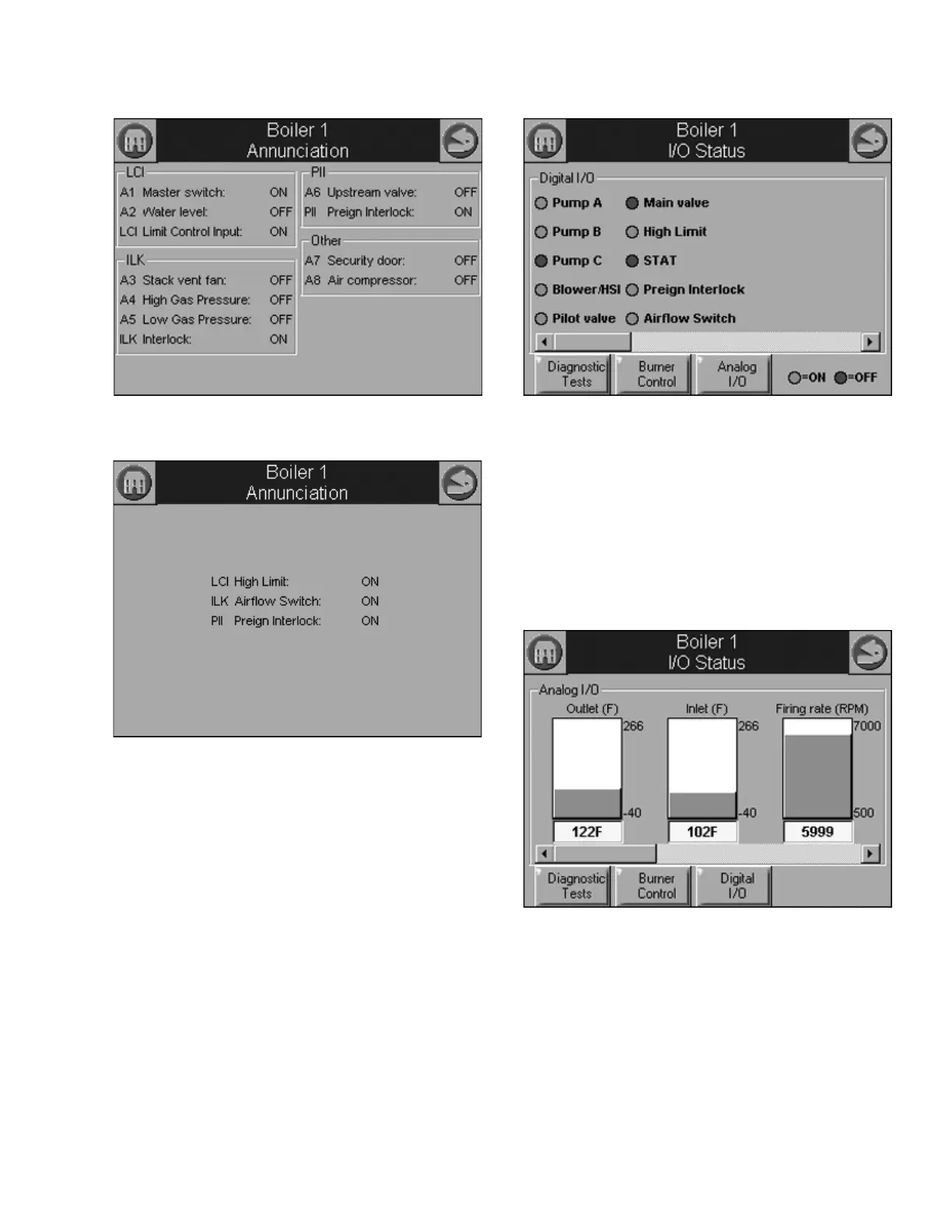

Fig. 23. Programmable annunciation.
Fig. 24. Fixed annunciation.
Diagnostic Page
The diagnostic page displays analog and digital I/O status of
the 833-3639. A snapshot of the diagnostic status is displayed
and updated once per second as it changes in the 833-3639.
See “833-3639 Diagnostics” on page 40 for more information
about this status.
The digital I/O data is displayed as LEDs that are either on
(green) or off (red) (see Fig. 25). Not all digital I/O can be
displayed at the same time on the page, so a horizontal scroll
bar is used to move the view left and right to show all digital
I/O data.
Fig. 25. Diagnostic page (digital I/O).
833-3639 analog I/O can also be viewed on the 833-3577. A
snapshot of the diagnostic status is displayed and updated as
it changes in the 833-3639.
The analog I/O data is displayed as bar charts with the I/O
level represented in the I/O range (see Fig. 26). Analog I/O
that is not enabled for the installation displays a blank I/O
level. Not all analog I/O can be displayed at the same time on
the page, so a horizontal scroll bar is used to move the view
left and right to show all analog I/O status.
Fig. 26. Diagnostics page (analog I/O).
A Diagnostic Tests button allows the user to conduct different
diagnostics with the 833-3639 (see “Diagnostics Tests” on
page 42).
Trend Analysis Page
Trend analysis of 833-3639 status data can be viewed on the
833-3577. A graph displays a historical view of 833-3639
status data over varying time periods.
