Section 2 — Installation
2-4 Part No. 750-263
3. Mounting Legs (see Figure 2-2)
1. Remove (4) boiler legs (1a) from the packaging and remove thetop two
nuts and bolts (1) on the boiler mounting legs (1a)
2. Remove the wooden skid cross beam from the front of the boiler
3. Using an appropriate jack, lift up the front of the boiler at (3)
4. Attach the boiler mounting leg with the two bolts removed in stepone.
Repeat for the other front leg.
5. Using an appropriate jack, lift up the back of the boiler andremove the
wooden skid side beams (4).
6. Attach the rear boiler mounting legs as described in step 4.
7. Lifting eyes (5) are provided for moving and positioning theboiler.
Do not drag by boiler legs. Failure to follow this caution could result
in equipment damage.
4. Insulation (see Figure 2-3)
1. Place the insulation blanket (1) around the pressure vessel as shown and
secure with plastic straps (1a) and strap fasteners(1b).
2. Tension springs (1c) are provided to hold the edges of the blanket
together.

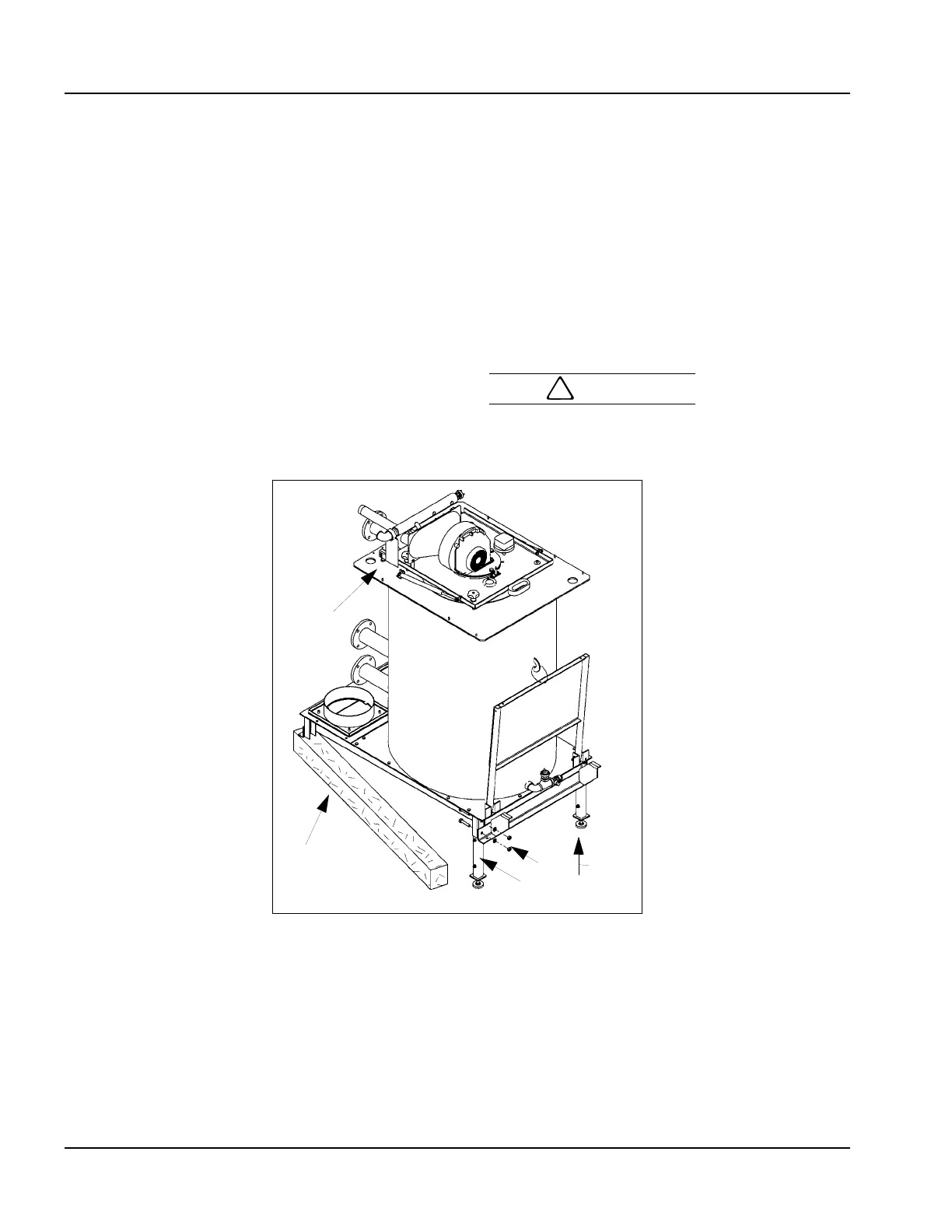

Figure 2-2 Mounting boiler legs
