Chapter 4 — CFC Commissioning
Part No. 750-263 4-3
• Expanded Annunciation option
• Outdoor reset
• Central Heating and Domestic Hot Water loop control
• Password protection of configurable parameters
• Time of Day (dual setpoint) control
• High Stack Temperature limit
• Remote reset
• Lead/Lag sequencing (future)
• (3) configurable pump relays
• Remote modulation/remote setpoint (future)
• Frost protection
Please review the tables within this Commissioning section to
familiarize yourself with the functions and parameters of the
Controller.
E. CB FALCON DISPLAY/OPERATOR INTERFACE
The CB Falcon display/operator interface is mounted at the left side
of the control panel for convenient access to all operating controls.
A thermowell-mounted NTC temperature sensor provides the
measured process variable signal to the controller.
1. Home Page
Turn on the control panel BOILER switch to apply power to the
boiler. The Home page will appear on the CB Falcon display.
Each CB Falcon in the hydronic system is represented on the Home
page by an icon and name.
2. Status Page
Pressing the Falcon icon takes the user to the Status page, which
summarizes boiler status and allows navigation to the configuration,
operational, and diagnostic areas of the CB Falcon interface.

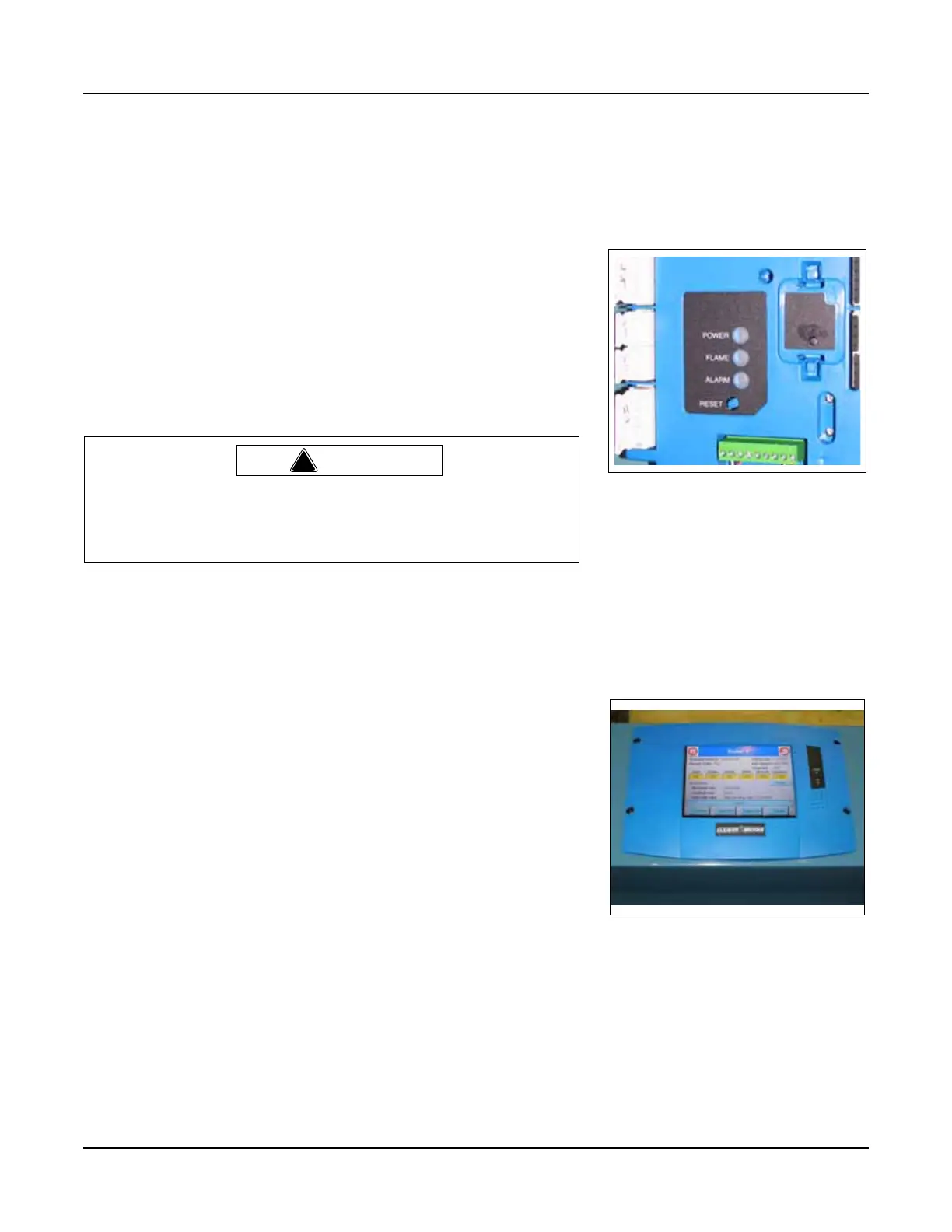

Figure 4-3 Controller status
LEDs and reset button
The Model CFC is factory tested. Nevertheless, all burner safety
controls should be checked upon installation, prior to initial firing.
Failure to verify burner control functioning could result in severe
bodily injury or death.
Figure 4-4 CB Falcon Display/
Operator Interface
