833-3577 CB-FALCON SYSTEM OPERATOR INTERFACE
750-241 29 65-0296—01

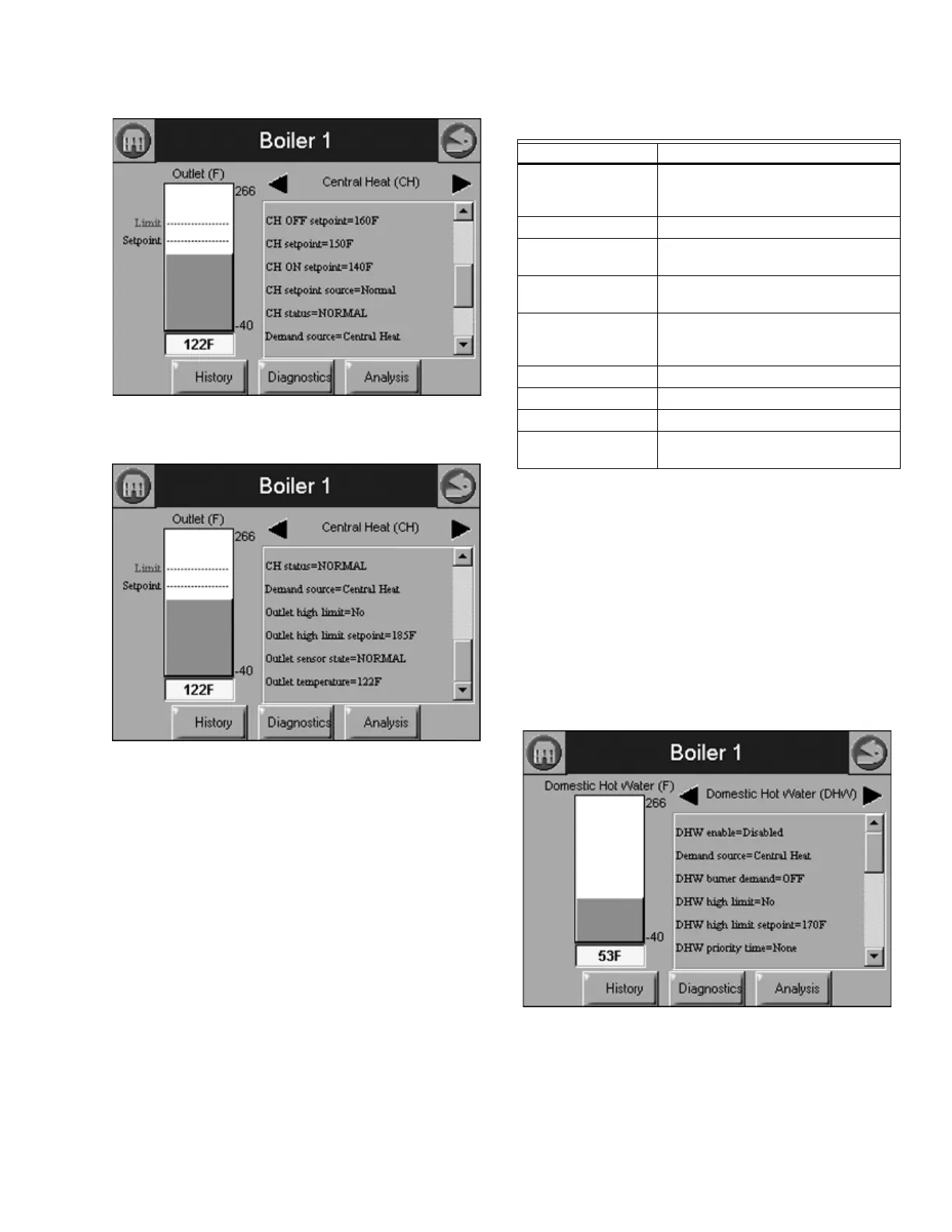

Fig. 63. CH Status menu (middle).
Fig. 64. CH Status menu (bottom).
The status data in Table 25 displays first when the DHW
heating loop is selected on the Home page. Scrolling through
the status groups eventually shows both.
1
DHW demand request status is reported by the 833-3639.
Expected 833-3639 implementation depends on DHW
demand source. When DHW demand source is Switch,
833-3639 reports digital status (no matter what has current
demand priority). When DHW demand source is Sensor,
833-3639 reports “Yes”; when DHW temperature is
between DHW setpoint - hysteresis On and DHW setpoint
+ hysteresis Off, otherwise it reports “No.”
The bar graph displayed for the CH control loop is the outlet
sensor temperature; for the DHW control loop it is the DHW
sensor temperature. When no analog DHW sensor is installed
(digital switch instead), the inlet sensor temperature is
displayed.
Fig. 65. DHW Status menu (top).
Table 25. DHW Status.
Data Comment
Demand source CH, DHW, Lead Lag, or Frost
Protection (parameter that has current
priority)
DHW status Disabled, Normal, Suspended
DHW demand
request
Yes or No
1
.
DHW temperature DHW temperature (NTC 10K analog)
or N/A (digital switch)
DHW sensor state None, Monitor, Blocked, Lockout,
Open, Short, Alarm (None=no DHW
sensor)
Modulation setpoint DHW setpoint based on TOD setting.
DHW high limit Yes or No (DHW limit switch status)
DHW pump On or Off (DHW pump switch).
DHW pump overrun
time
Count down of DHW pump overrun
