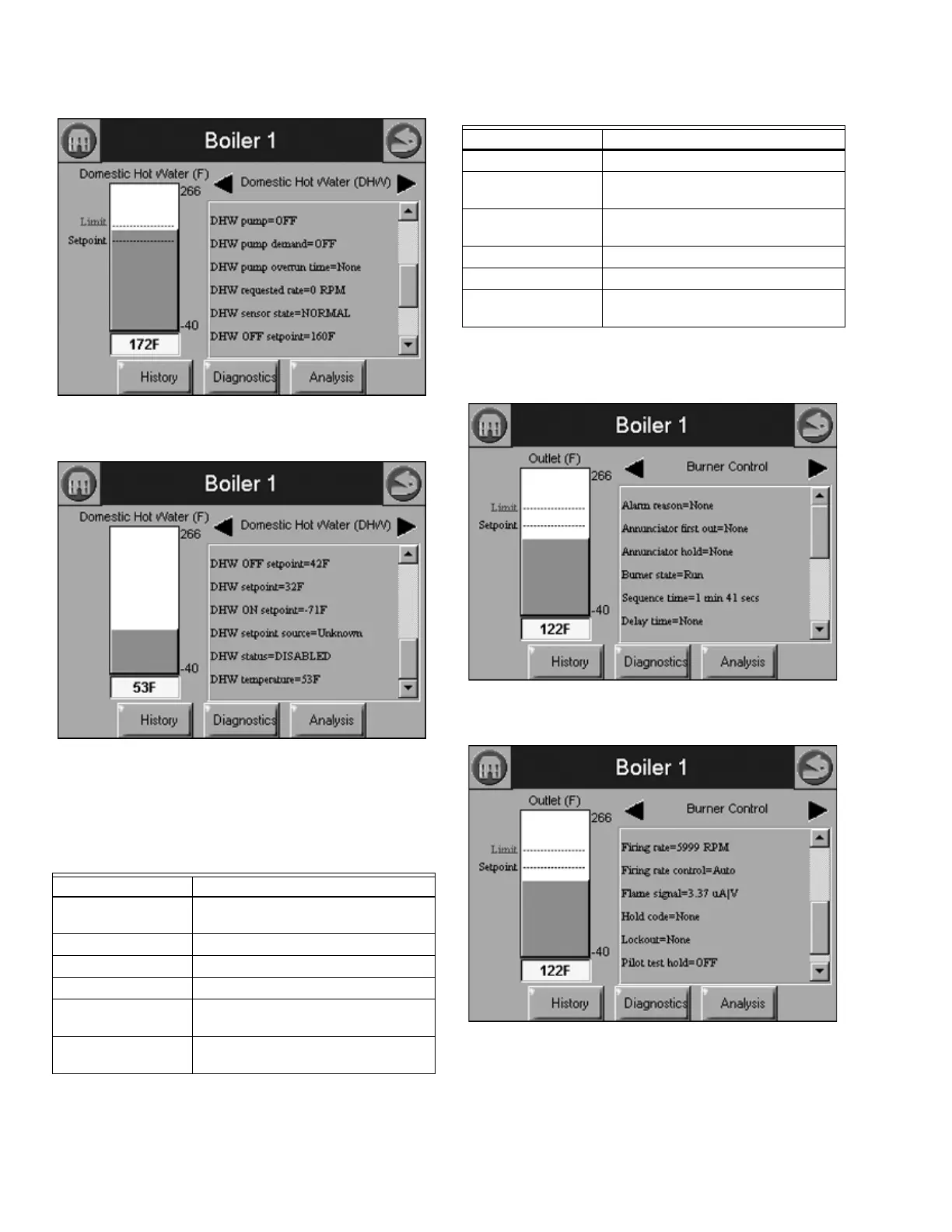

Fig. 66. DHW Status menu (middle).
Fig. 67. DHW Status menu (bottom).
The Burner Control status page will display the status data
shown in Table 26.
The bar graph displayed for this status is the outlet sensor
temperature.
Fig. 68. Burner Control Status menu (top).
Fig. 69. Burner Control Status menu (middle).
Table 26. Burner Control Status.
Data Comment
Burner control status Disabled, Lockout, Hold,
Unconfigured safety data, Normal
Sequence state Burner control sequence state
Fault Current fault code when active fault
Last warning Last reported warning code
Alarm reason Reason for last 833-3639 alarm:
None, Lockout, or Other
Annunciator first out First annunciator input related to
lockout
Burner Lockout/Hold Display source for lockout/hold status
Delay time Running display of delay time when
burner control in delay state.
Firing rate % or RPM. Adjustable when firing rate
control set to Manual.
Firing rate control Auto or Manual
Flame signal Flame signal strength
Pilot test hold On or Off (only applicable when pilot
type is interrupted)
Table 26. Burner Control Status. (Continued)
Data Comment
To Next Page
