V4730C/V8730C/V4734C 1:1 Gas/Air Servo Regulated Gas Valves
EN2R-9074 0612R1-NE 5

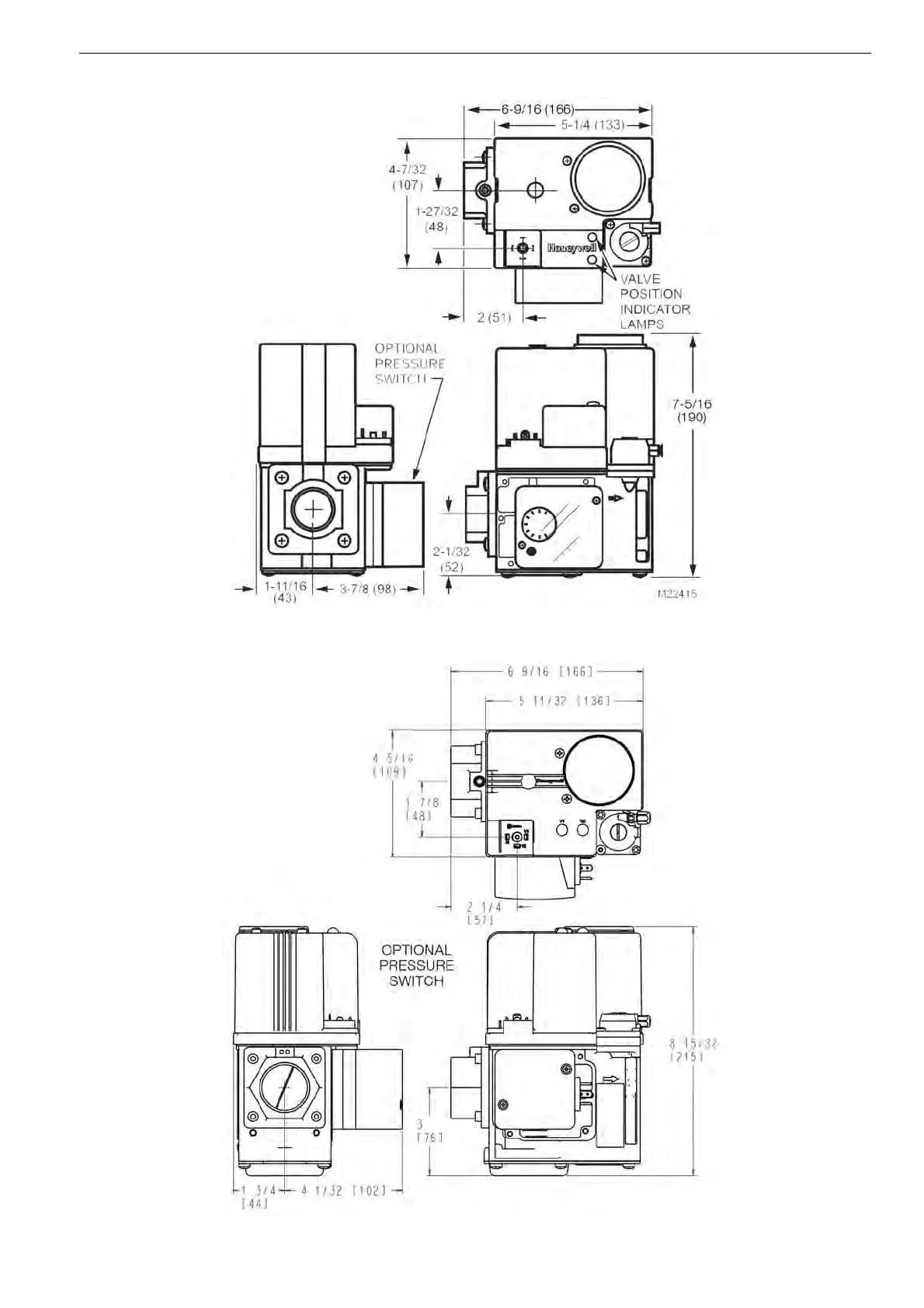

Fig. 3: V4730C/V8730C Gas Valves, 1-1/4 in. (32mm) size, dimensions in in. (mm).
Fig. 4: V4734C Gas Valves 1-1/4 in. (32mm) size, dimensions in in. (mm).
