V4730C/V8730C/V4734C 1:1 Gas/Air Servo Regulated Gas Valves
8 EN2R-9074 0612R1-NE

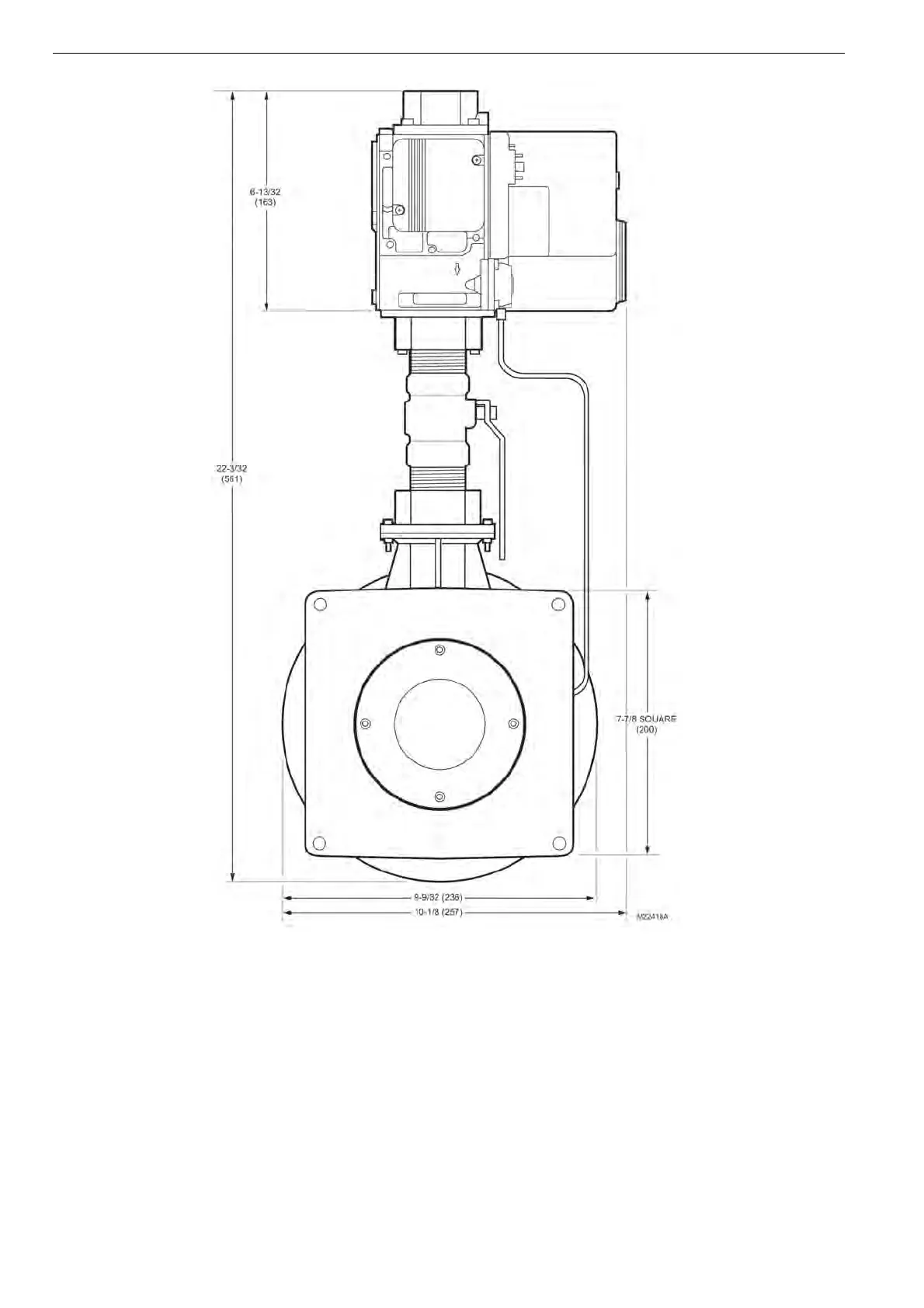

Fig. 7: Venturi, 500 kW, with V4730 gas valve and valve shutoff kit installed, dimensions in in. (mm), part 2
