Electrode spacing for the booster ignitor should be 1/8”.
The distance of the nearest booster ignitor electrode to the mantle
is approximately 1/2” (See Figure 5-7).

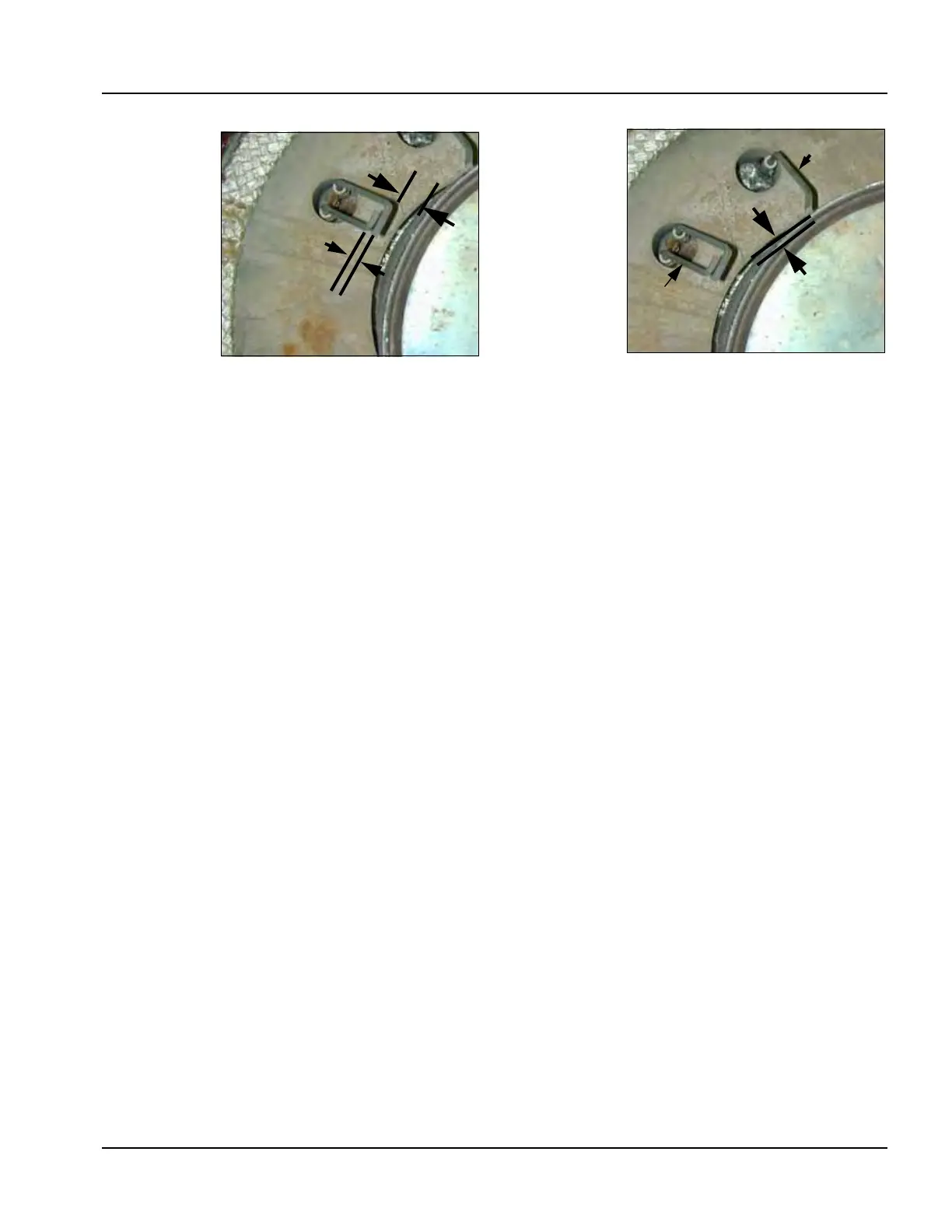

Figure 5-6 Flame Rod and
Ignitors
1/8”
Flame Rod
Booster
Ignitor
Bottom of
Burner Canister
Figure 5-7 Ignitor Electrodes
1/8”
1/2”
