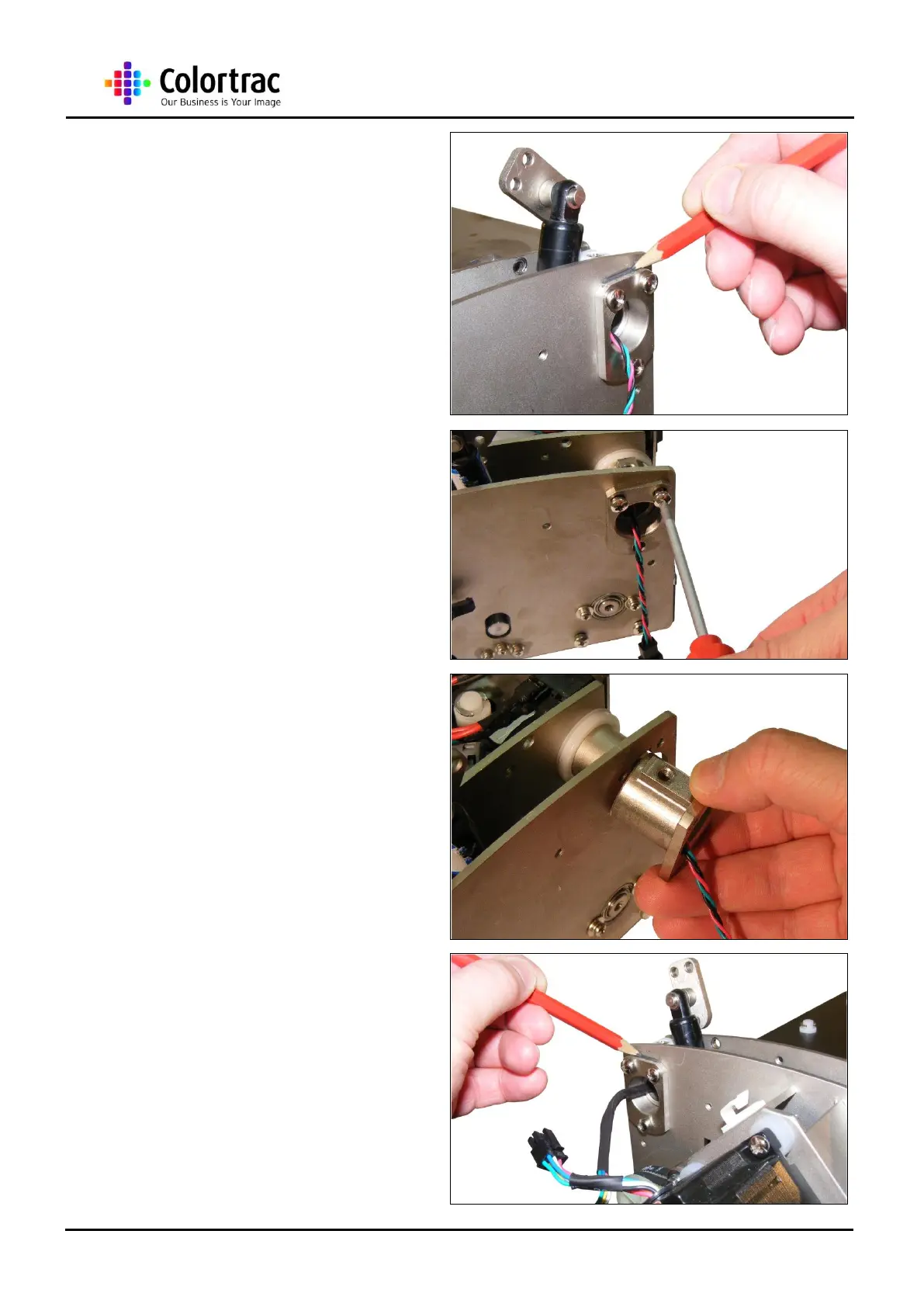

11. Use a pencil to mark the
position of the Righ Hinge
Bracket before removing it.
12. Remove the 3 x M5 screws
holding the Right Hinge
Bracket in place.
13. Pull the Right Outer Hinge
Bracket out from the Side
Plate, making sure not to
catch the cable or connector.
14. Use a pencil to mark the
position of the Left Hinge
Bracket before removing it.
