M Series Service Manual
Page 48 of 129

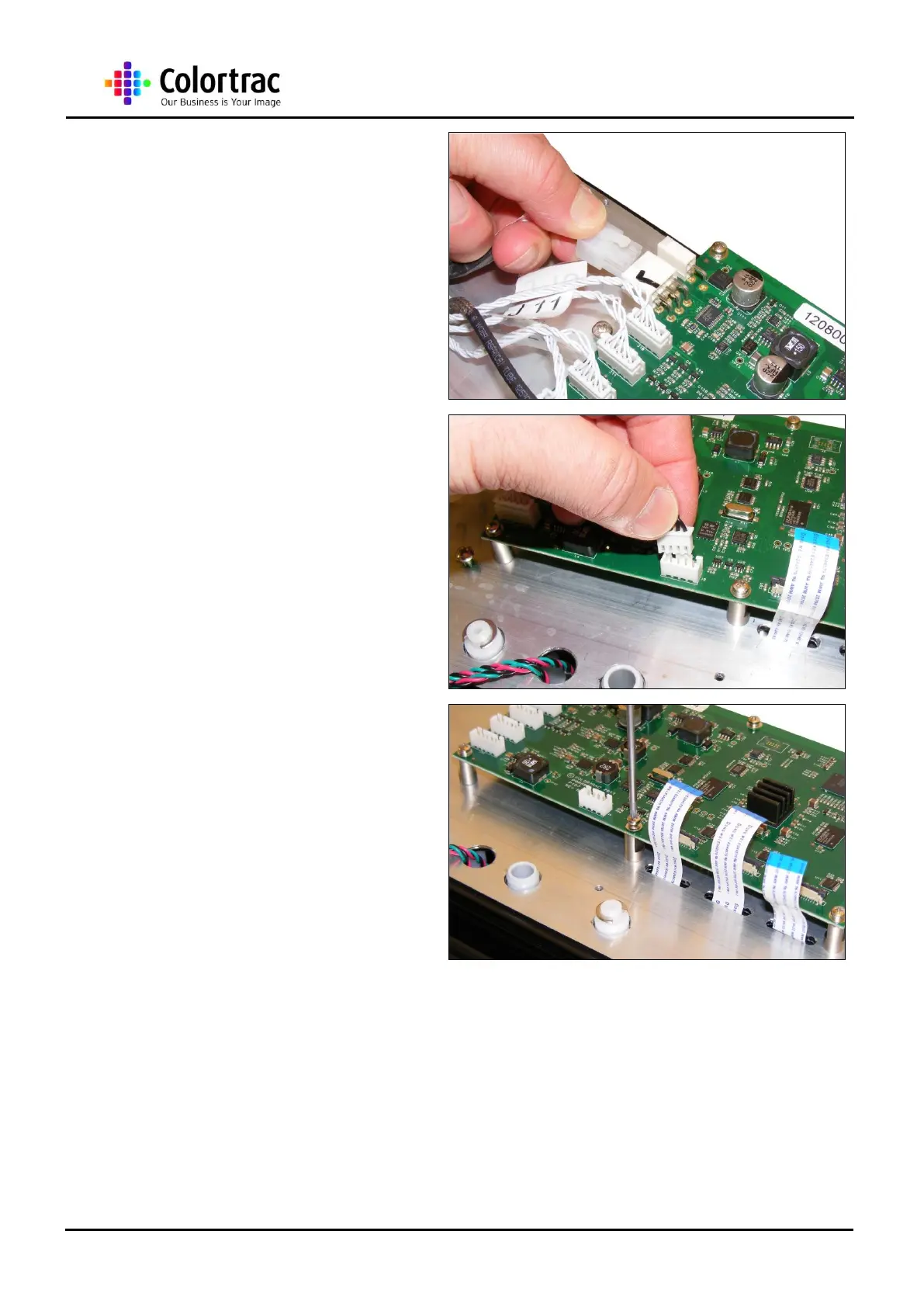

11. Disconnect the Mains Cable,
Motor Control Cable and the
4 x LED Control Cables.
12. Disconnect the Control Board
Cable.
13. Remove the 6 x M3 screws
holding the Main Board to the
Lid Assembly.
