Colortrac M25e - Page 47

M Series Service Manual
Page 47 of 129

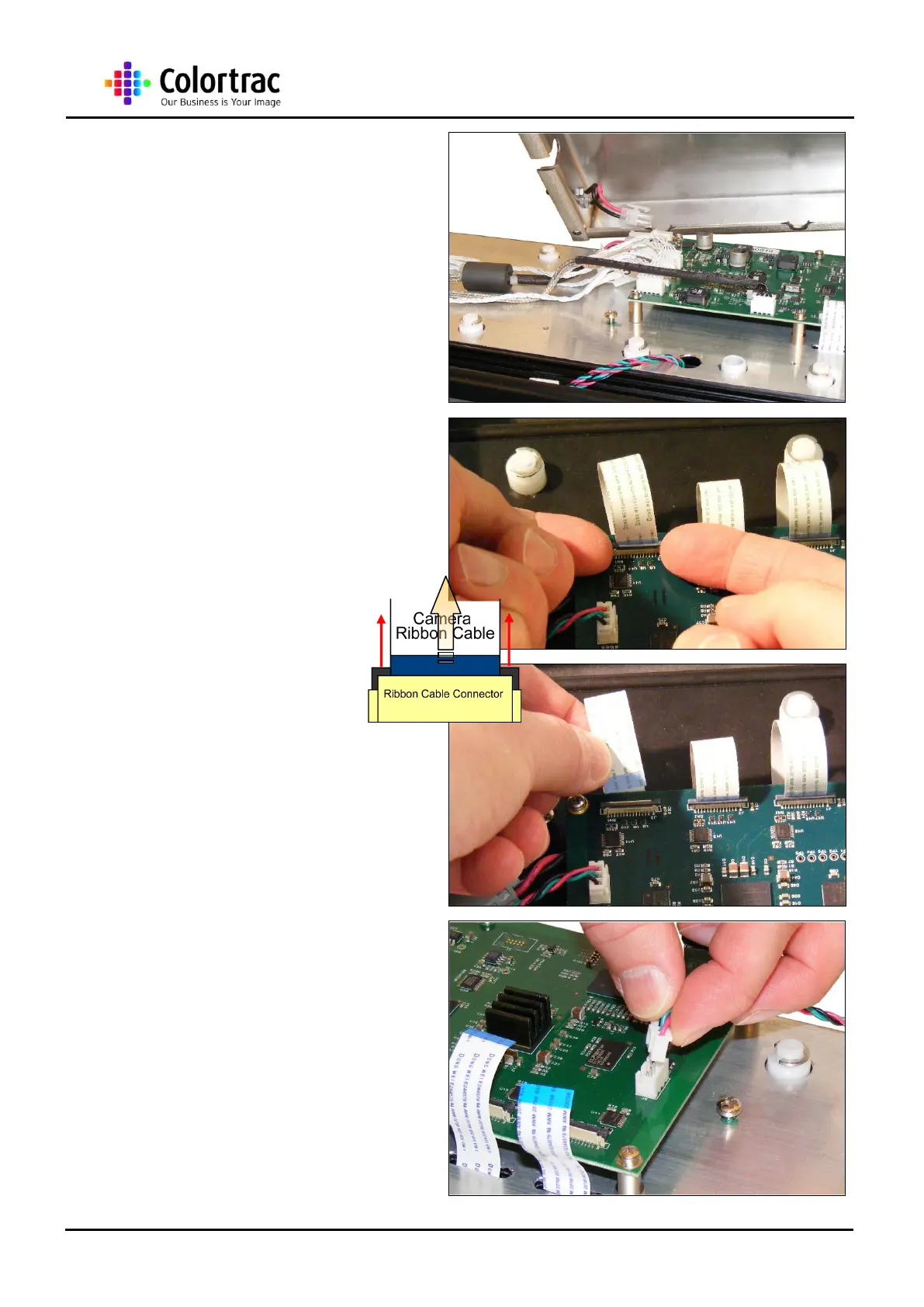

7. Remove the Main Board
Cover and store in a safe
place.
8. Gently lift the locking bar on
each ribbon cable connector.
Don’t use too much force,
which could break the
connector.
9. Gently pull the ribbon cable
from the connector.
10. Disconnect the Microswitch
cable.
