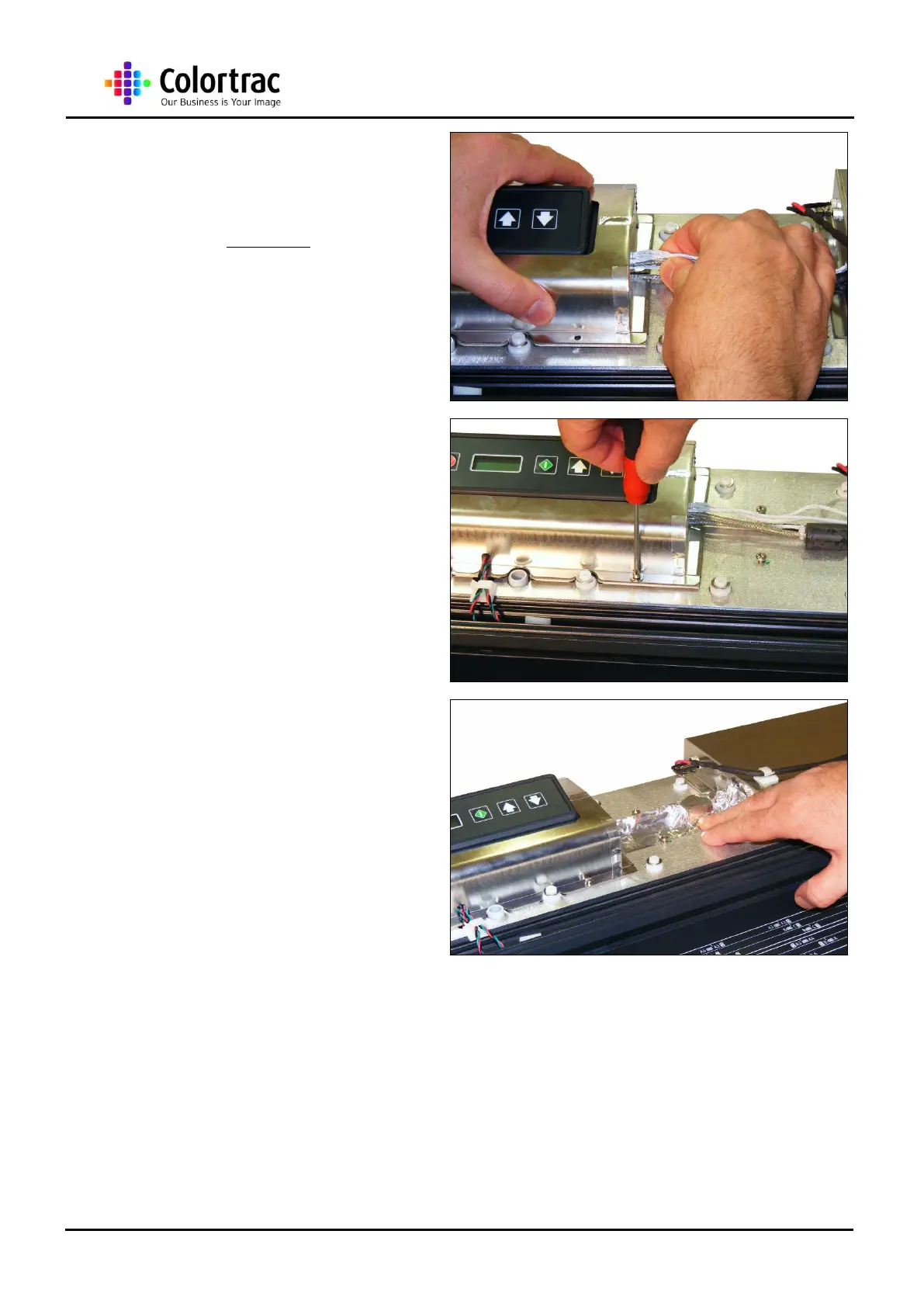

19. For the M40, fit the Control
Board Bracket Cover and
make sure all the cables are
in the cut out.
20. Refit the 4 x M3 screws to
hold the Control Board
Bracket Cover to the Lid
Assembly.
21. Re-apply the Aluminium EMC
Tape over exposed cables.
