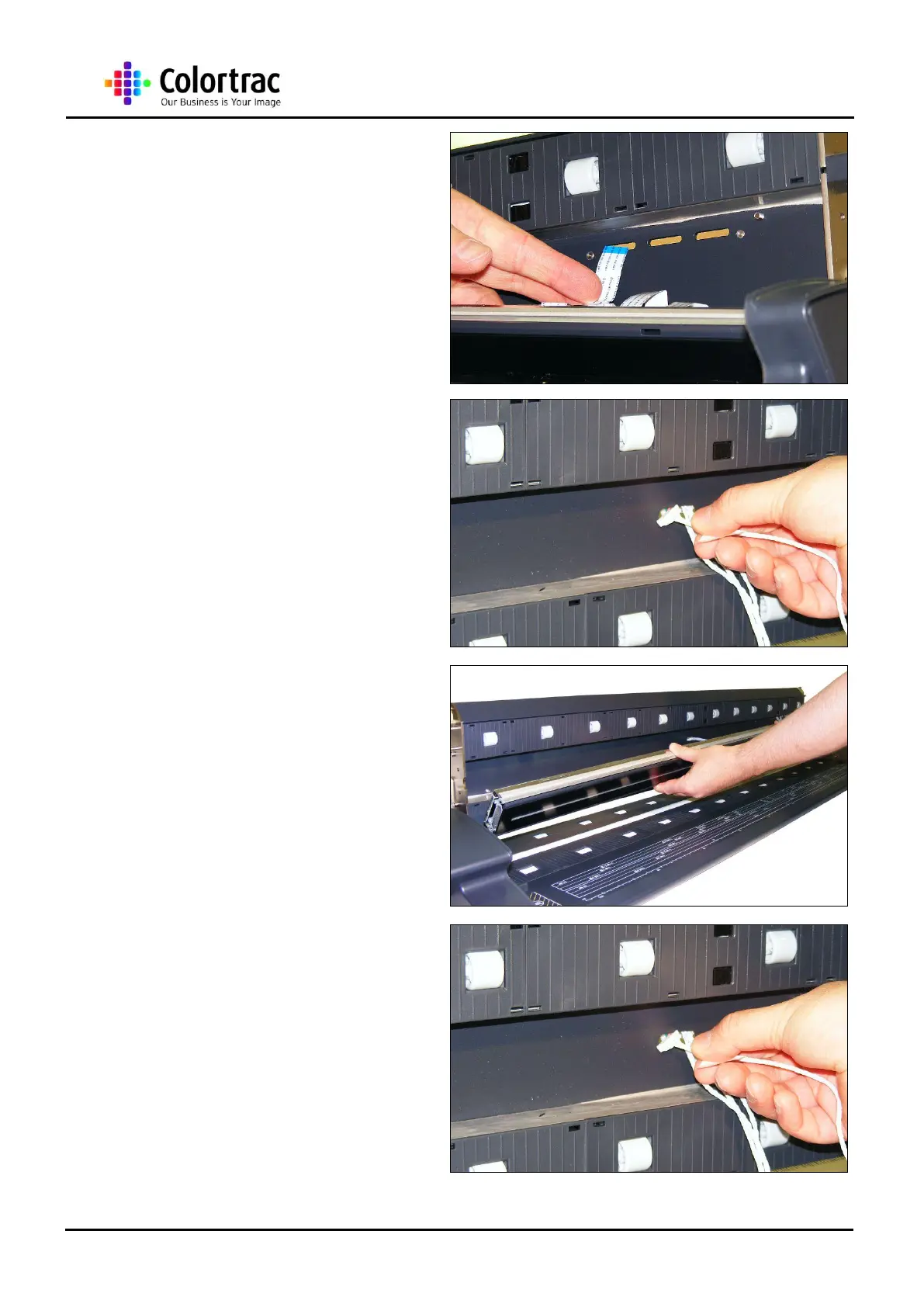

11. Allow the CIS ribbon cables
to pull through the Lid
Assembly. Gently assist if
necessary.
12. Gently pull the remaining
length of the LED cables
through from the Lid
Assembly.
13. Gently lift the SingleSensor
CIS Assy away from the Lid
Assembly.
14. To refit, feed the LED cables
through the Lid Assembly
before lifting the
SingleSensor CIS Assy into
place, continuing to pull the
cables through the Lid
Assembly as the
SingleSensor CIS Assy is
lifted into place.
