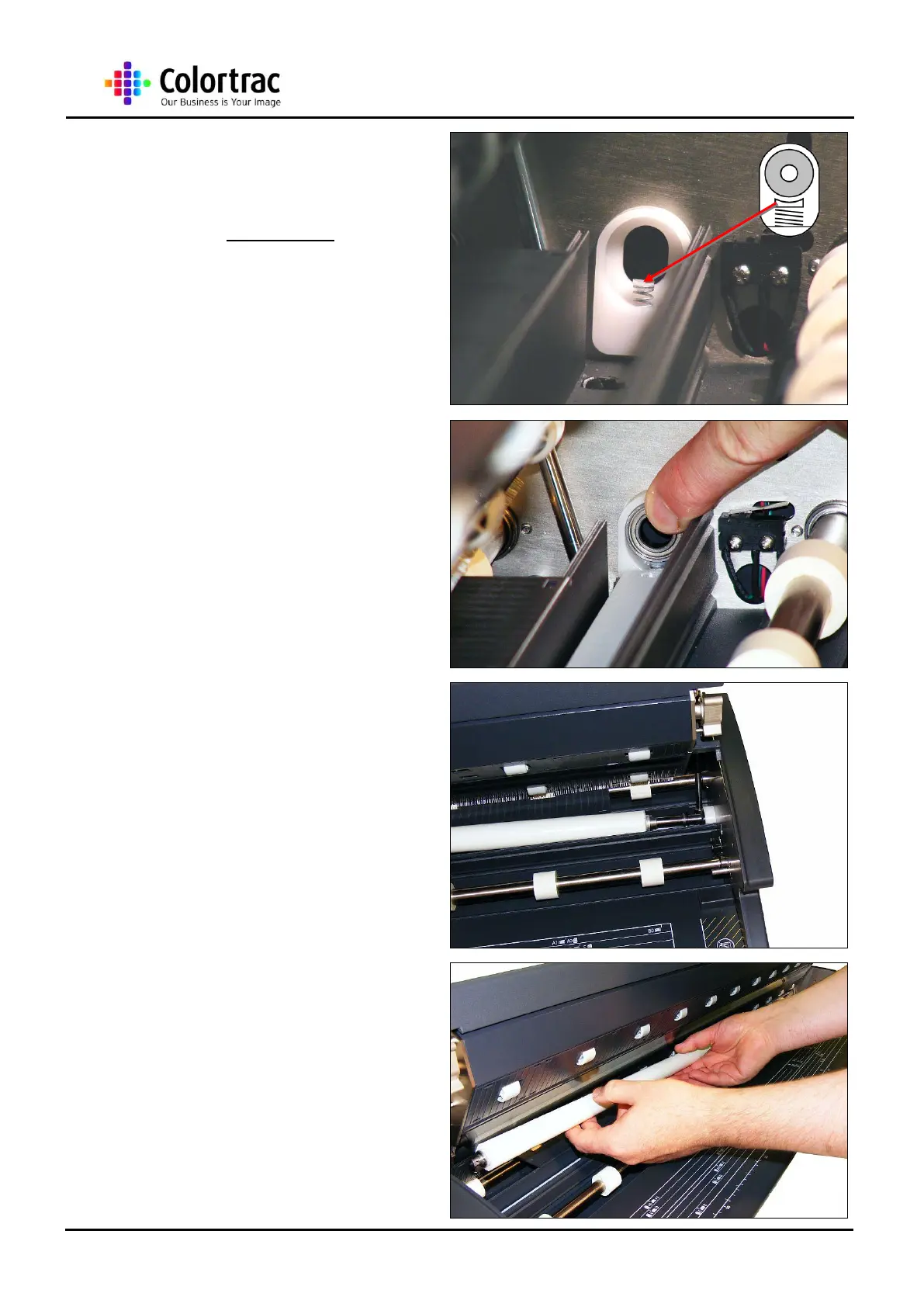

10. When replacing, make sure
the Hold Up Spring is present
and the curvature of the
Spring Cap is aligned ready
for the bearing.
11. Insert the Bearing into the
hole on top of the Hold Up
Spring Cap.
12. Fit the Hold Up Roller Unit
Shaft into the bearing in the
Right End Plate.
13. Gently lower the Hold Up
Roller Unit into place, making
sure not to damage its
sleaving.
