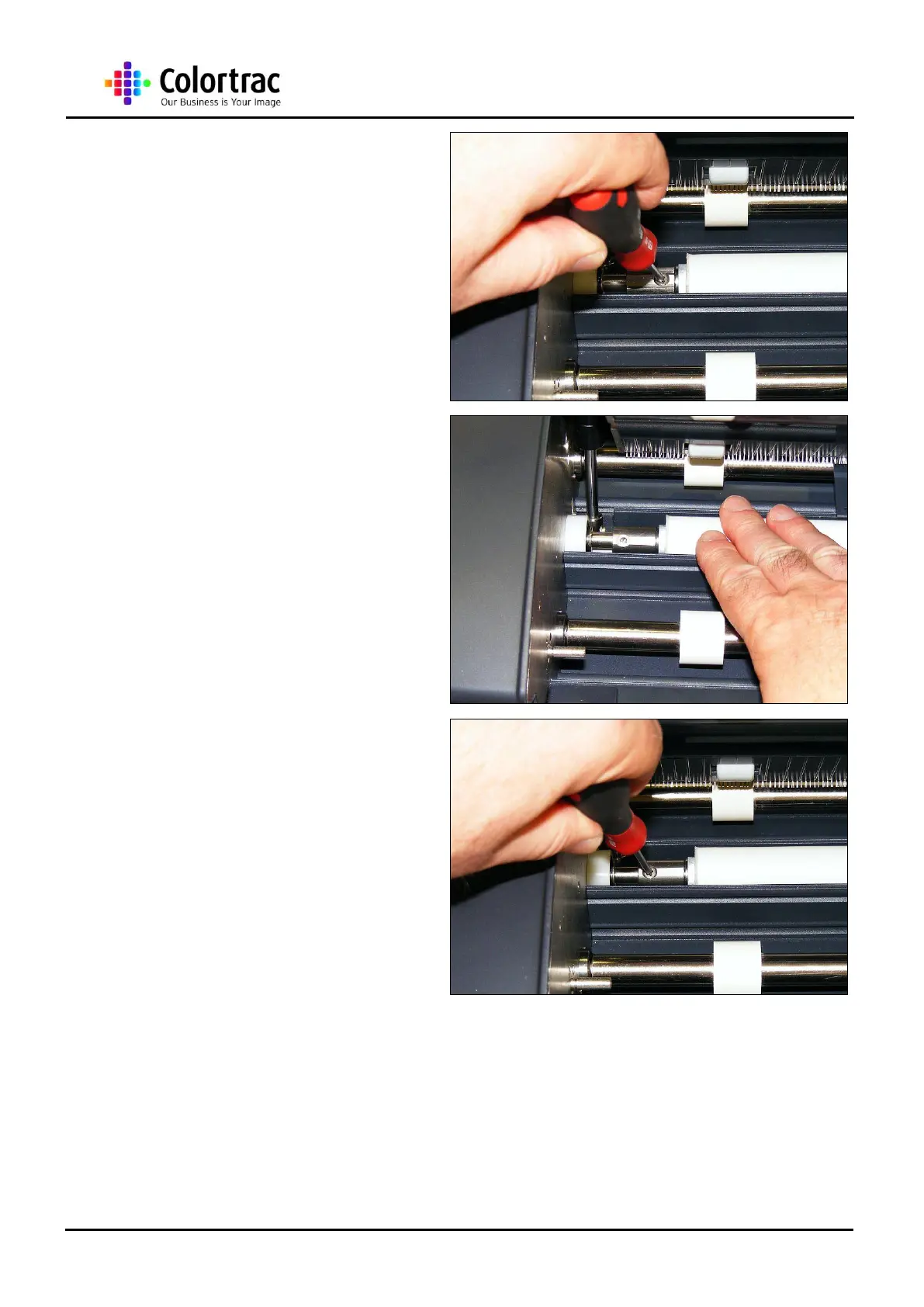

17. Refit the M3 CSK screw to
hold the Hold Up Roller Unit
Collar Assembly to the Hold
Up Roller Unit.
18. Rotate the Hold Up Roller
Unit until the hole at the left
end of the Collar is level with
the threaded hole in the Drive
Shaft.
NOTE: If necessary, rotate the Drive Roller to
align the two holes.
19. Refit the M3 CSK Screw to
hold the Hold Up Roller Unit
Collar Assembly to the Motor
Drive Shaft.
