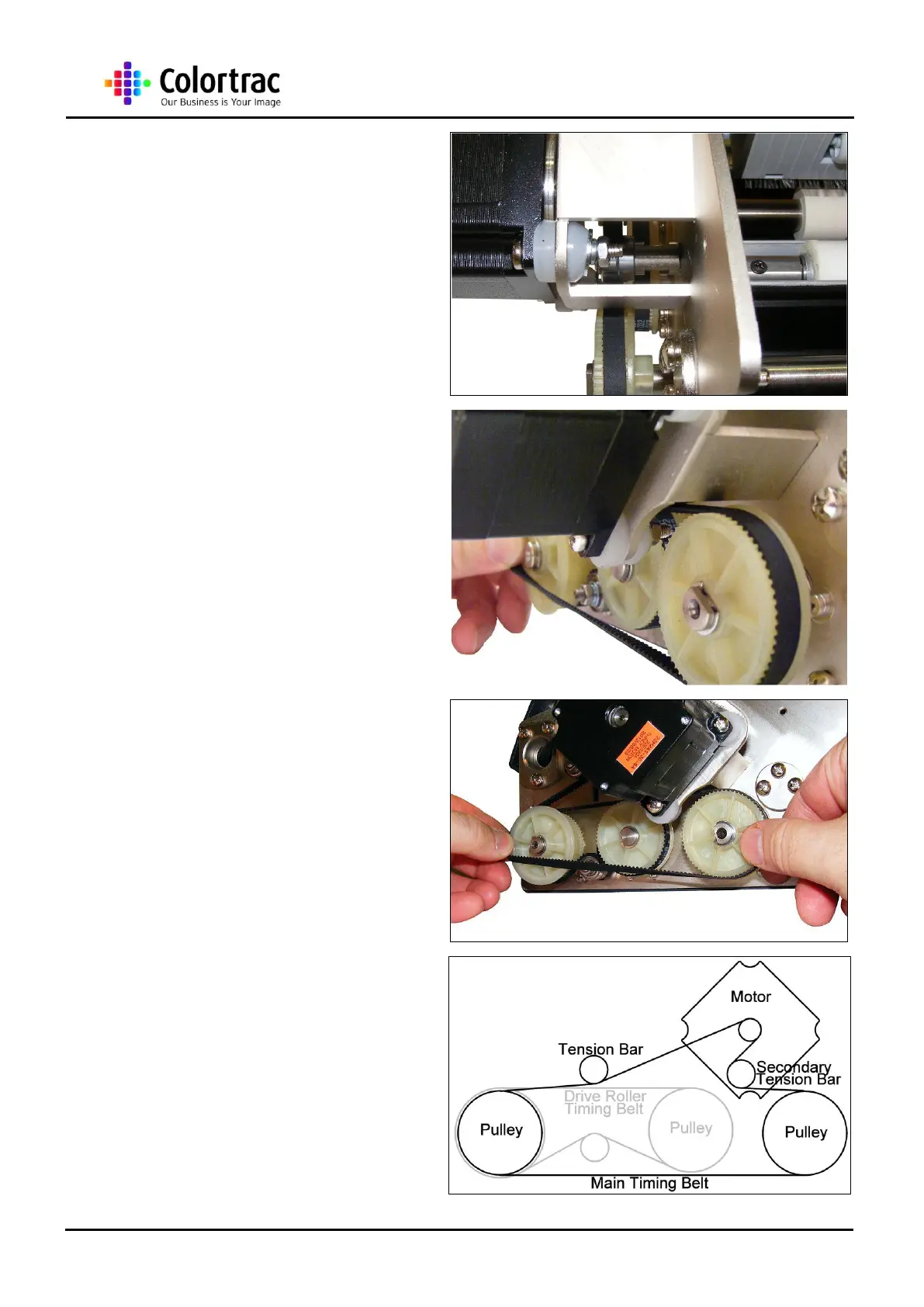

7. Make sure the Main Timing
Belt goes around the
secondary Tension Bar.
8. Position the Main Timing Belt
over the Front Drive Roller
Pulley.
9. Position the Main Timing Belt
over the Rear Driver Roller
Pulley and rotate the pulley if
necessary to get the Main
Timing Belt completely on.
10. Make sure the Main Timing
Belt follows the correct path
as shown.
