Colortrac M25e - Page 98

M Series Service Manual
Page 98 of 129

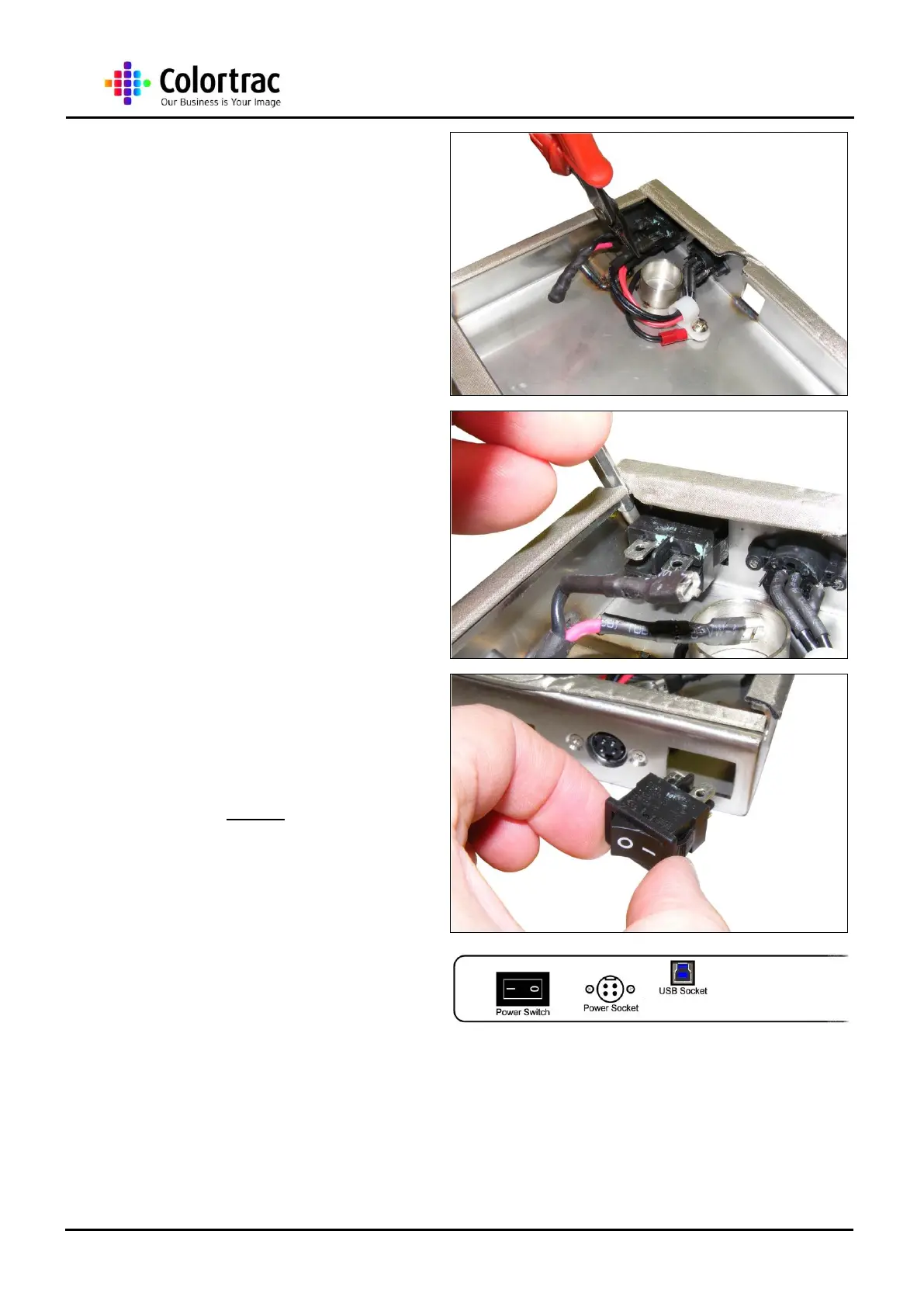

3. Gently pull each cable off
from the Power Switch
terminals using pliers.
4. Press the latches of the
Power Switch in with the
Small Flat Screwdriver and
push the switch through the
hole.
5. Pull the Power Switch
completely out from the Rear
Panel.
6. Refit the Power Switch by
pushing through the hole in
the Rear Panel until the
latches lock in place.
7. Make sure the ‘1’ position is
towards the End Plate, as
shown.
