Compaq Armada 1100 Reference Guide

. . . . . . . . . . . . . . . . . . . . . . . . .
Appendix C
Connector Pin Assignments
C
-
1
Part Number:262446-001 Writer: Dianne Fielden Saved by: JohnnieA
Saved Date: 02/26/96 1:26 PM 12:17 PM File Name: APPC.DOC
Connector Pin Assignments

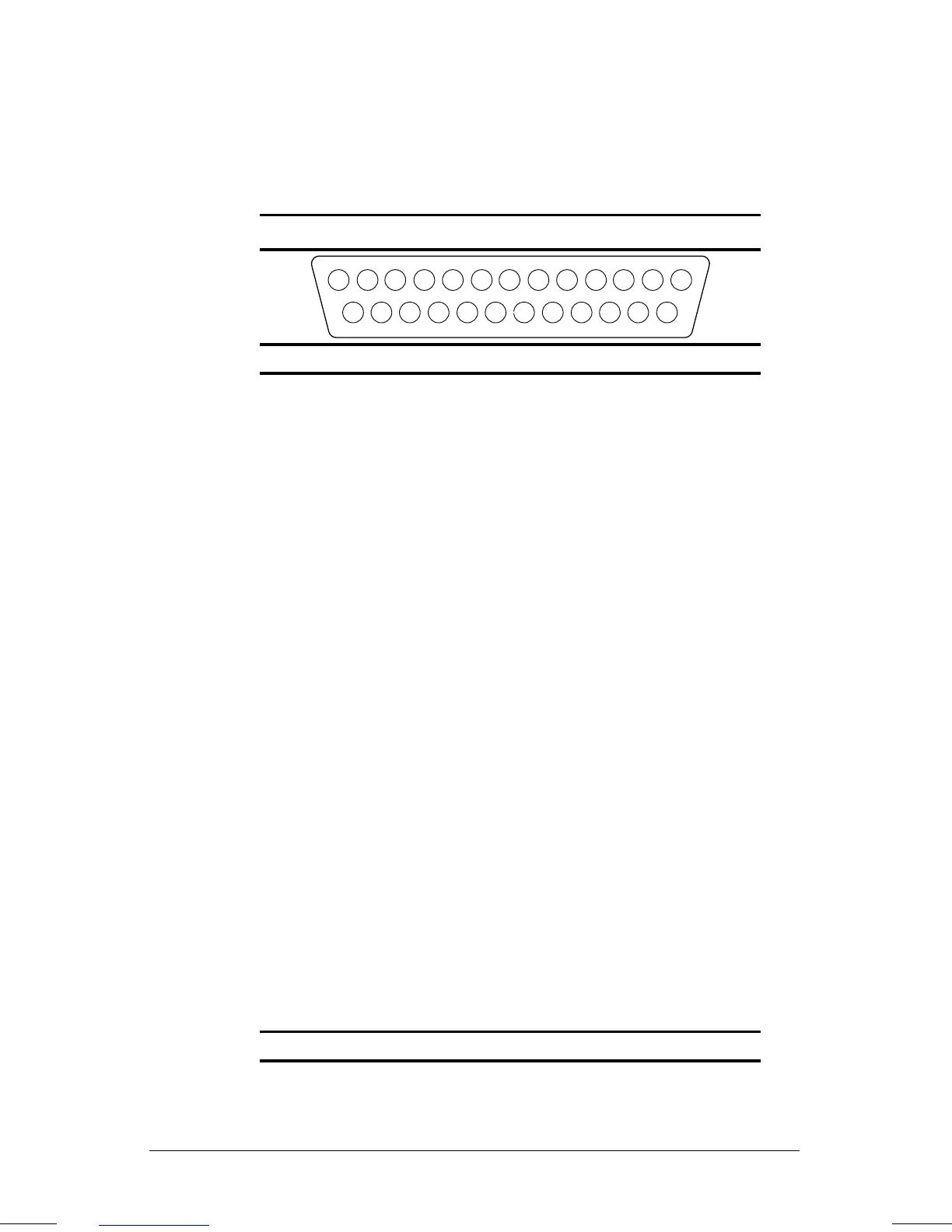

Parallel Connector
14
3
2
16
15
14
17
21
1819
20
5
6
7
8
13
12
11
10
9
25
24
23
22
Pin Signal
1 Strobe*
2 Data Bit 0
3 Data Bit 1
4 Data Bit 2
5 Data Bit 3
6 Data Bit 4
7 Data Bit 5
8 Data Bit 6
9 Data Bit 7
10 Acknowledge*
11 Busy
12 Paper Out
13 Select
14 Auto Linefeed*
15 Error*
16 Initialize Printer*
17 Select In*
18 Ground
19 Ground
20 Ground
21 Ground
22 Ground
23 Ground
24 Ground
25 Ground
* = Active low
