Front and Side Components
3
4
5
6
7
1
2
Front and Side Components

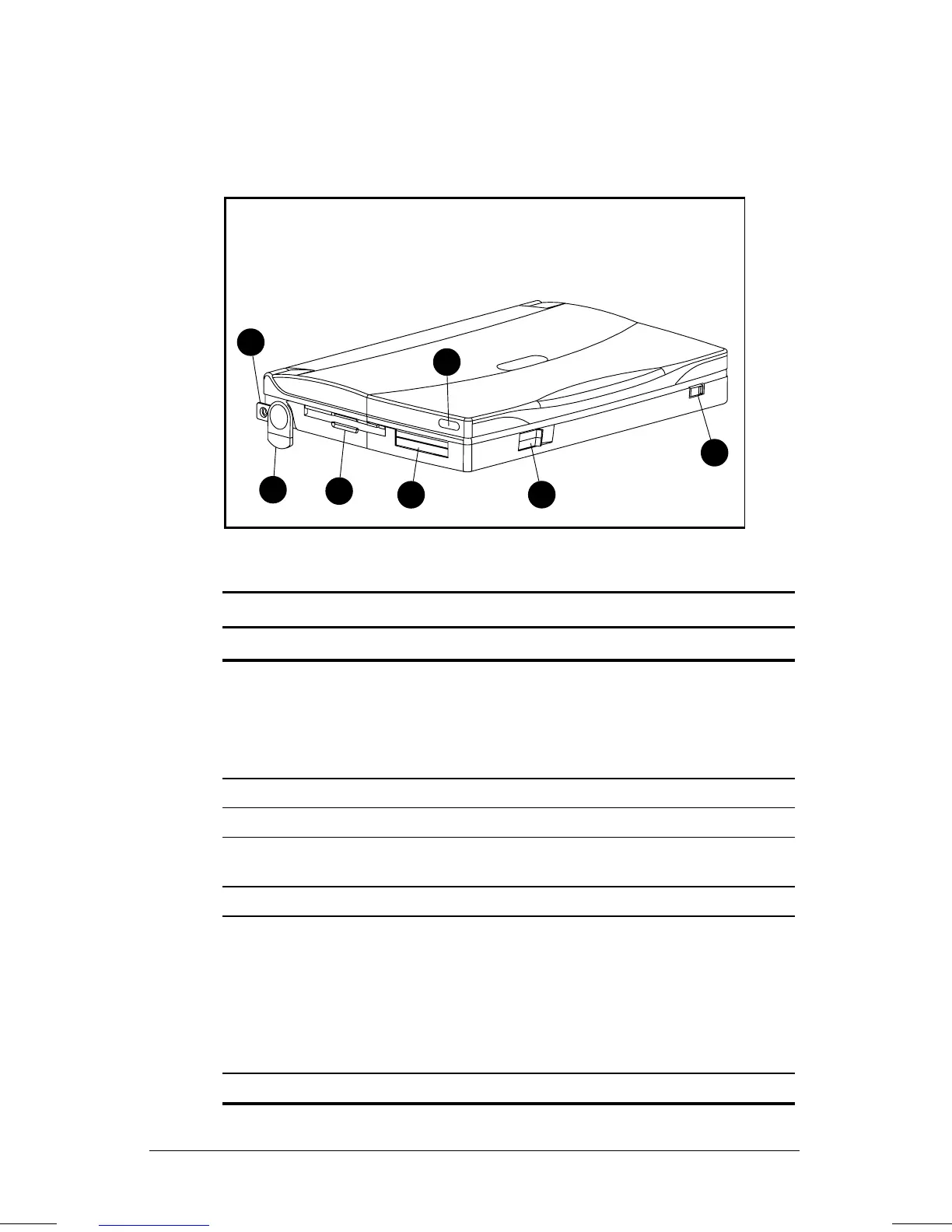

Front and Side of the Computer
Ref. Component Function
n
Handle bracket (2) Allows the handle to be attached
NOTE: To attach the handle, move
the tilt feet aside and rotate the
concealed handle brackets toward the
rear of the computer
o
Keyboard tilt feet (2) Tilt the keyboard 4 degrees
p
Diskette drive Internal drive for 3.5-inch diskettes
q
PC Card slots Accept one Type III, or two Type II, or
two Type I PC Cards
r
Display latches (2) Open the computer
s
PC Card release levers Release PC Cards
NOTE: Before releasing a card, click the
PC Card indicator on the taskbar. Click
Stop for the card you want to remove.
When the system prompts you to remove
the card, swing the top or bottom release
lever to the left until the card ejects.
t
Battery compartment button Opens battery compartment
