UT-4500 Series C- and Ku-Band Up Converters MN/UT4500.IOM
Introduction Revision 3
1–2
1.2 Functional Description
Figure 1-2 shows the UT-4500 chassis with its top cover removed. The major
chassis components and module assemblies are:
• Signal Path Module
• Step Loop Module
• Monitor & Control Assembly
• Removable Module (IOM, PSM, TSM, EQM, or RSM installs into rear
chassis slot)
• Reference Oscillator Assembly
• Sum Loop Module
• Power Supply Assembly

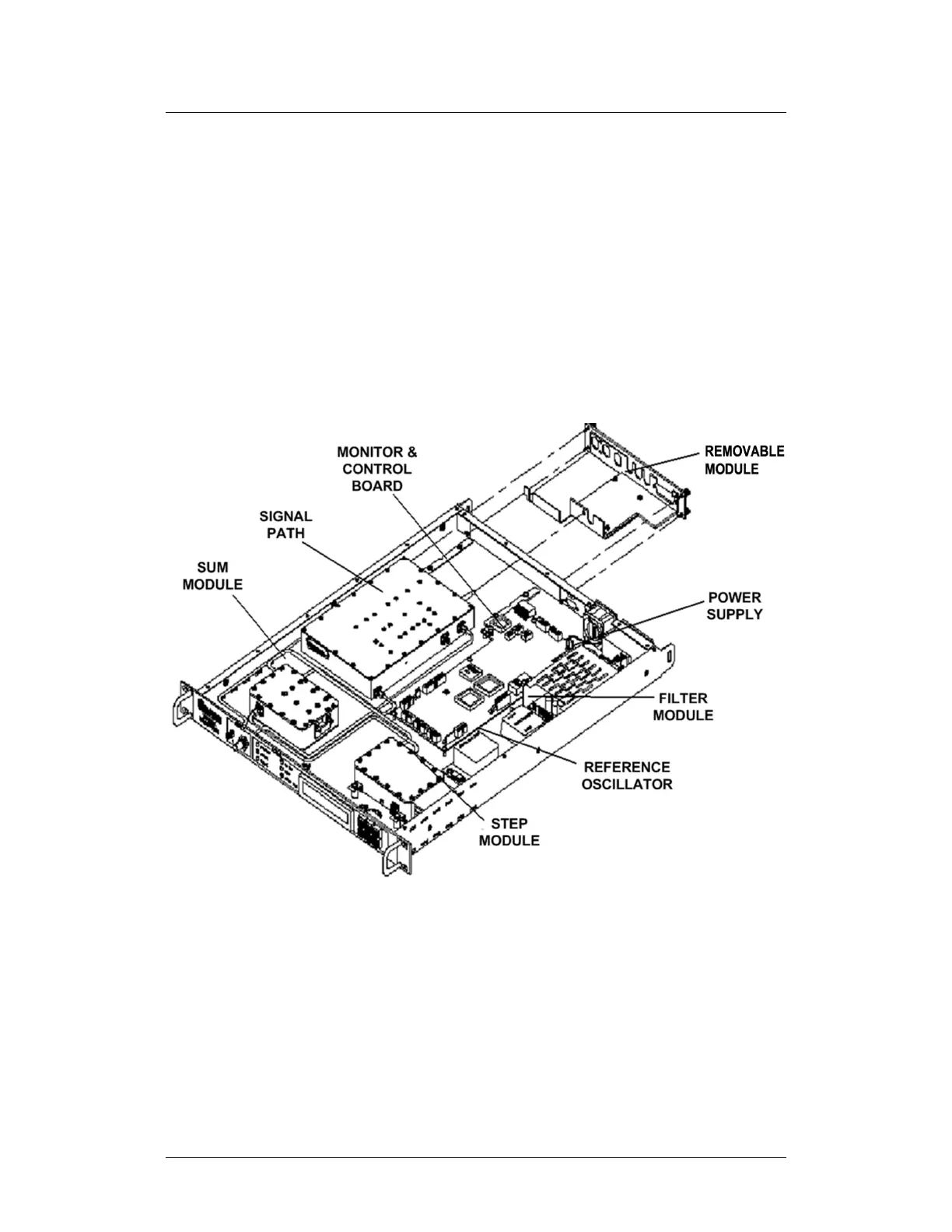

Figure 1-2. UT-4500 Series Up Converter Physical Configuration
