Comtech EF Data UT-4500 Series - Removable Module Operation in Redundant Applications; Figure 4-19. TSM Switching Schematic

UT-4500 Series C- and Ku-Band Up Converters MN/UT4500.IOM
Front and Rear Panel Connectors Revision 3
4–19
4.2.4.3 Removable Module Operation in Redundant Applications
See Appendix A. REDUNDANT SYSTEM OPERATION for descriptions of
the specific use of these various switch modules in redundant
applications.
In subsystems where a redundant converter configuration is used, the backup
converter (BU) has an Input/Output Module (IOM), while the online converters
have Transmit Switch Modules (TSM). When a fault occurs in an online
converter, the system commands the TSM in the faulted converter to switch to
the BU (Figure 4-19).

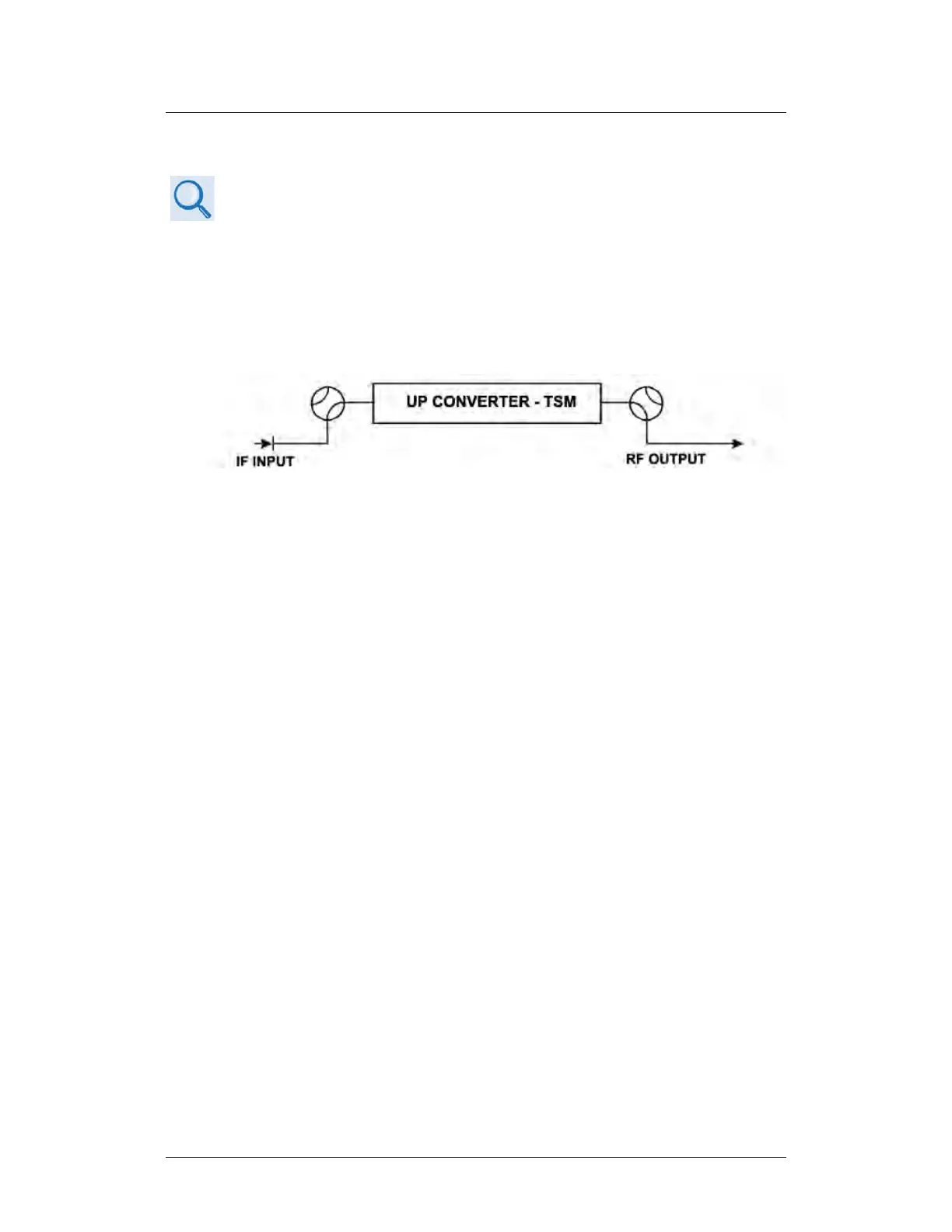

Figure 4-19. TSM Switching Schematic
