6–1
Chapter 6. FRONT PANEL
OPERATION
6.1 Front Panel Overview
You may fully control and monitor the UT-4500 Series C- or Ku-Band Up
Converter from the front panel (Figure 6-1).

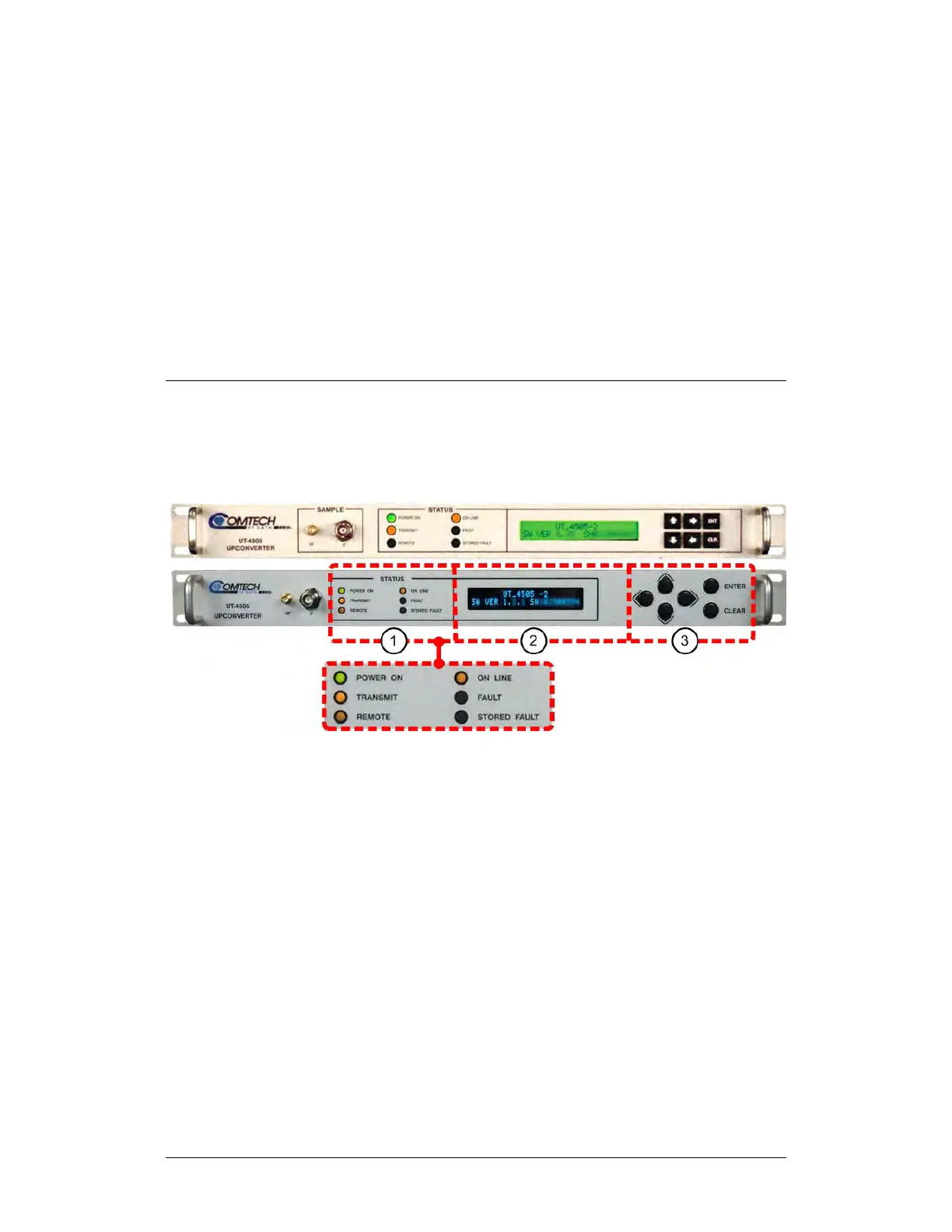

(TOP) Initially Released Chassis
(BOTTOM) Current Production Unit
Figure 6-1. Front Panel View (UT-4505 Shown)
