Comtech EF Data UT-4500 Series - Install the Optional Rear Support Brackets Kit; Figure 3-3. Install the Optional Rear-Mounting Support Brackets Kit

UT-4500 Series C- and Ku-Band Up Converters MN/UT4500.IOM
Installation and Startup Revision 3
3–5
3.2.1 Install the Optional Rear Support Brackets Kit
Feature Description
1 Back of unit
2 Rack Enclosure Threaded Rear Mounting Rail (typical)
Item
Kit / Quantity
CEFD P/N Description
KT/6228-2 KT/6228-3
1
2
2
HW/10-32SHLDR
Shoulder Screw, #10
2 4 4 HW/10-32FLT Flat Washer, #10
3
2
2
HW/10-32SPLIT
Lock Washer, #10
4 2 2 HW/10-32HEXNUT Hex Nut, #10
5 4 4 HW/10-32x1/2RK
Bolt, #10, Rear Support
Bracket
6
2 – FP/6138-2
Bracket, Rear Support
(4”)
– 2 FP/6138-3
Bracket, Rear Support
(10”)

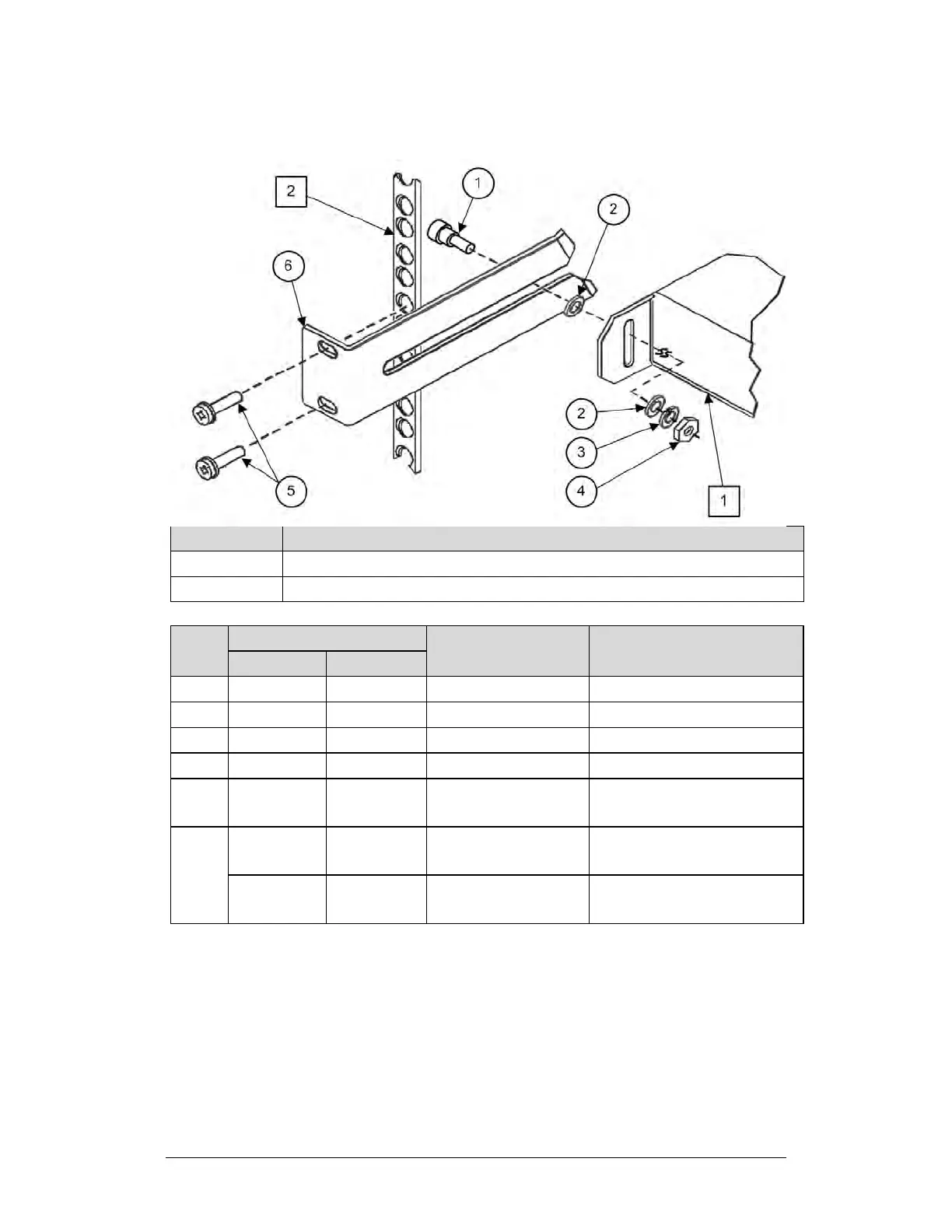

Figure 3-3. Install the Optional Rear-Mounting Support Brackets Kit
