Comtech EF Data UT-4500 Series - Removable Personality Modules; Figure 4-16. Personality Module Examples

UT-4500 Series C- and Ku-Band Up Converters MN/UT4500.IOM
Front and Rear Panel Connectors Revision 3
4–16
4.2.4 Removable “Personality” Modules
Contact Comtech EF Data Product Support for complete details and
specifications for the module(s) specific to your system.
See Chapter 2. SPECIFICATIONS for the listings of available switch
modules for use with the DT-4500 Series Down Converters and
UT-4500 Series Up Converters.

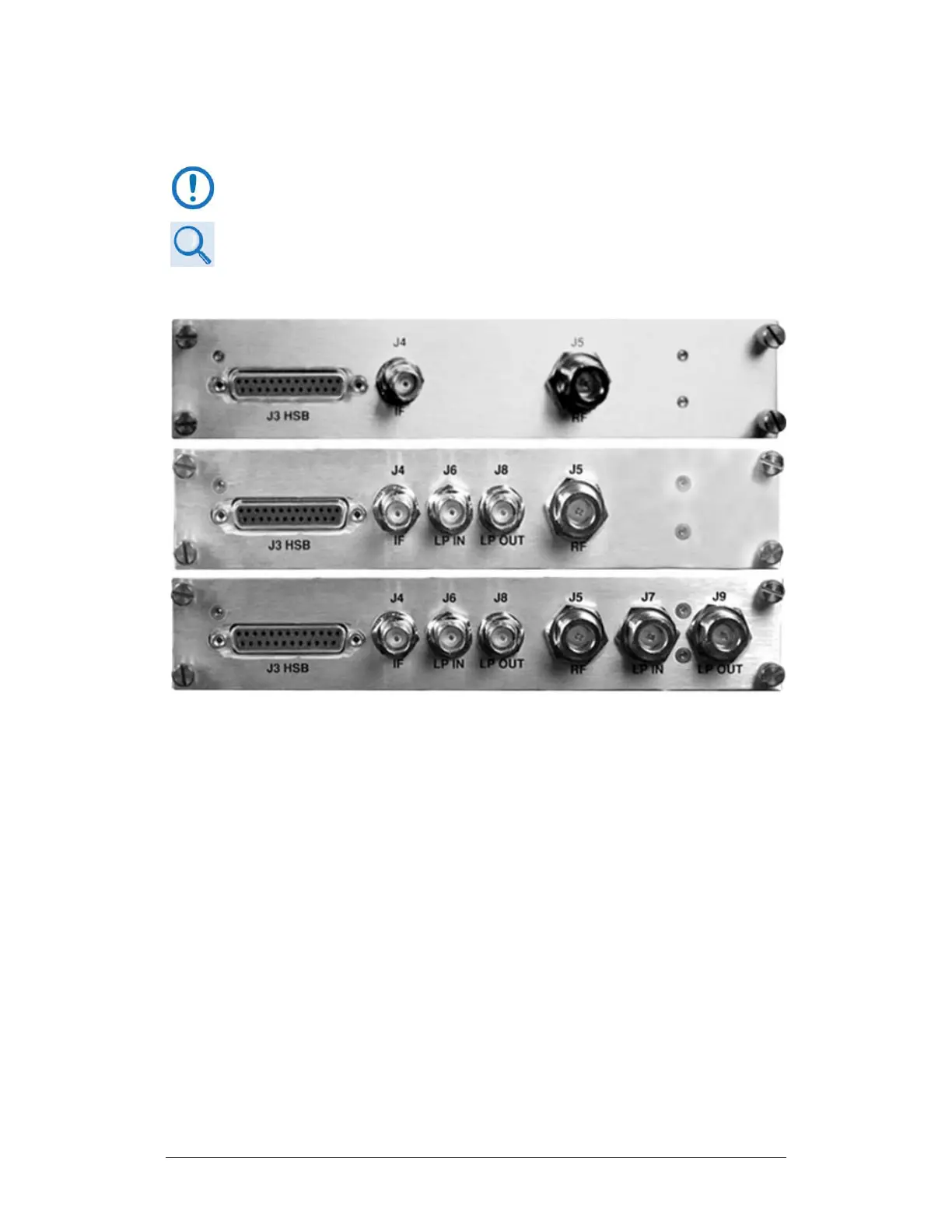

(TOP) Input/Output Switch Module (IOM)
(CENTER) Receive Switch Module (RSM)
(BOTTOM) Transmit Switch Module (TSM)
Figure 4-16. “Personality” Module Examples
Depending on the application, the converter chassis rear panel module slot
accepts an Input/Output Module (IOM), Polarity Switch Module (PSM), Transmit
Switch Module (TSM), Equalizer Module (EQM), or Receive Switch Module (RSM).
The converter RF, IF, and High-Speed Bus (HSB) connectors are integral to the
installed module.
Removable modules are available for both non-redundant (also referred to as
single thread or standalone) and redundant applications.
