UT-4500 Series C- and Ku-Band Up Converters MN/UT4500.IOM
Front and Rear Panel Connectors Revision 3
4–15
4.2.3.1 UT-4500 Series Cable Connections

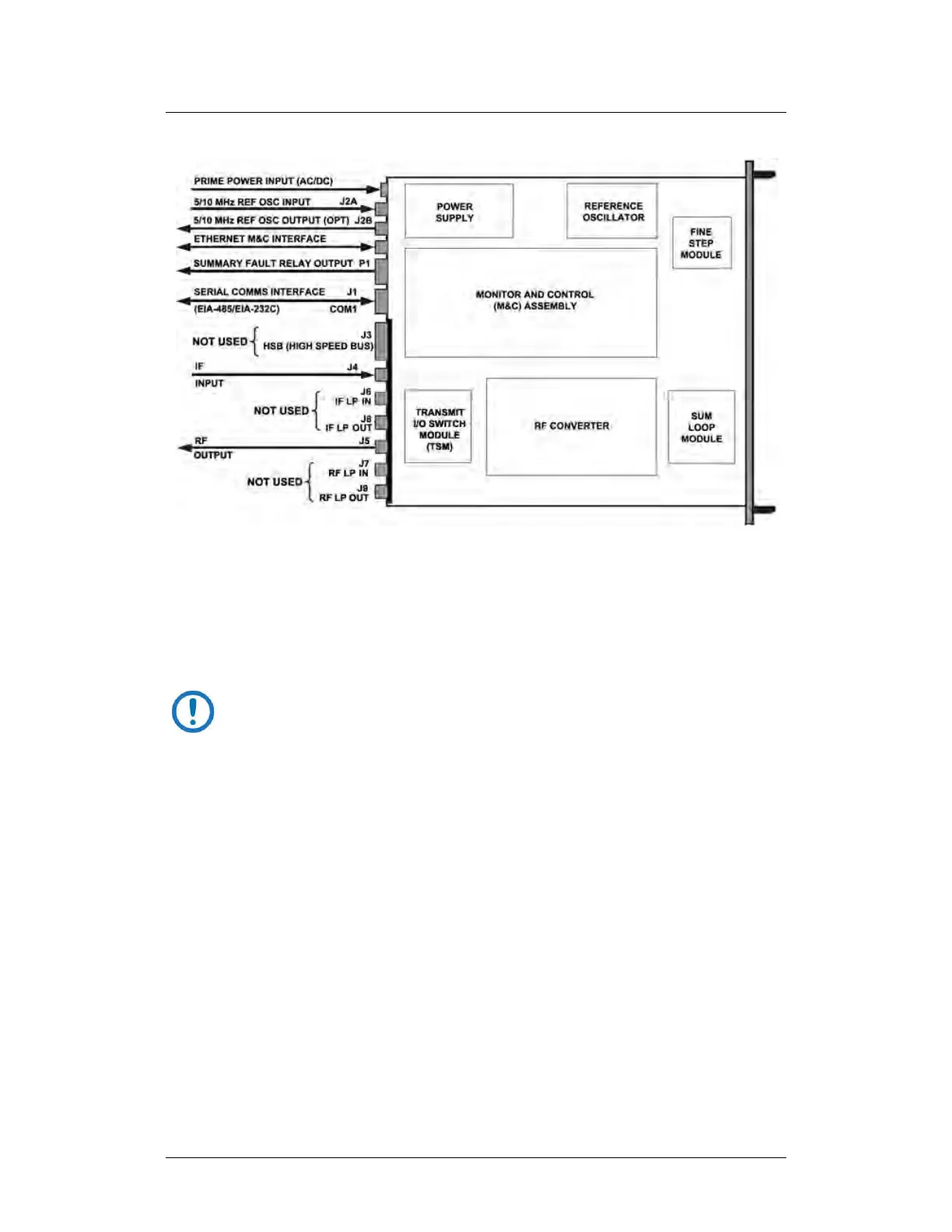

Figure 4-15. UT-4500 Series Cabling Example (with TSM)
Figure 4-15 provides a cabling connection example for the UT-4500 Series C- or
Ku-Band Up Converter. This example depicts use of a Transmit Switch Module
(TSM) in a standalone configuration – the module cabling requirements will vary.
All other cabling to the available rear chassis connectors is identical across all
applications.
Contact Comtech EF Data Product Support for cabling instructions
specific to your converter application.
