6.2 Power Connections
Refer to Figure 6-2 and Figure 6-3.

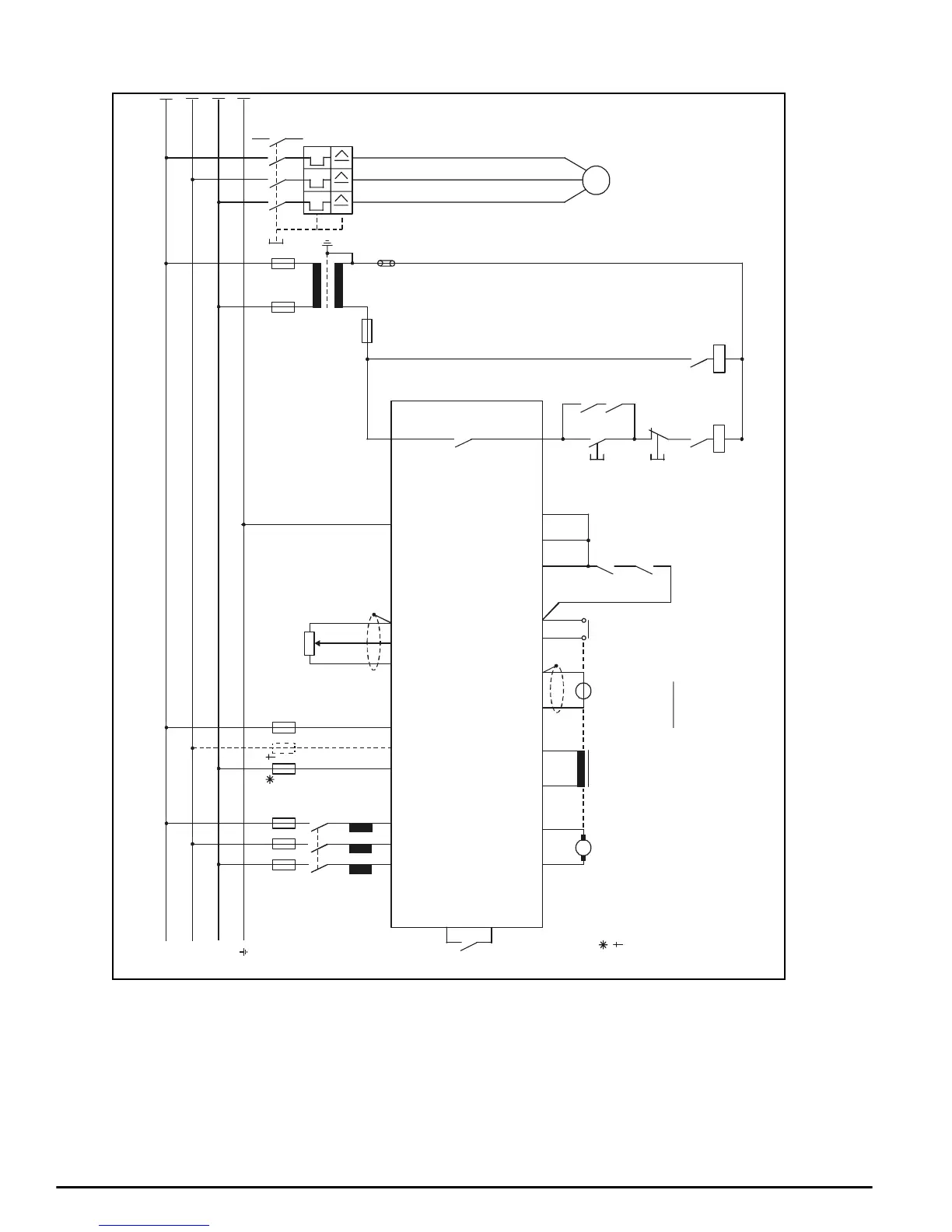

Figure 6-2 Single quadrant power connections
Access to the power terminals of the smaller Drives is gained by opening
the front cover, which is secured by two captive screws, one at each
upper corner, and hinged at the bottom (Figure 6-1). The higher-rated
models have externally-accessible terminal lugs.
6.2.1 Motor Rotation
Check that the direction of rotation is as required as soon as the Drive is
first turned on. If not, exchange the connections to the armature or the
field (but not both). If an encoder or tachogenerator (tachometer)
feedback is installed, the sense of the signals to the Drive must be
reversed to correspond.
The Drive control options can alternatively be used to reverse the
direction of rotation.
M
T
B
R
Y
B
LF LC
LR
LC
L1 L2
L3
E1 E2 E3
1
3
20
MBS
Motor
blower
+10V 0V
31 25 21A1
A2 F1 F2
910
840
0V
0V
L11
L12
39
37
RL1
RR
LC
RR
MBS
LC
RR
START
STOP
Drive Ready
LK
LC RR
Manual
set
speed
Single Quadrant
MT
Fuses for wiring protection only
Only need to connect E2 with North American field bridge and for field supply on M350(R) to M1850(R)
LR Line reactors LC Line contactor LF Line fuses LK Link (Jumper) MBS Motor blower starter MT Motor thermal switch RR Run relay T Tachogenerator
(Tachometer)
Terminals 31 Enable 21 Run permit 25 Run forward
Function
Ground
