Chapter 3 Drive And Motor Dimension
10

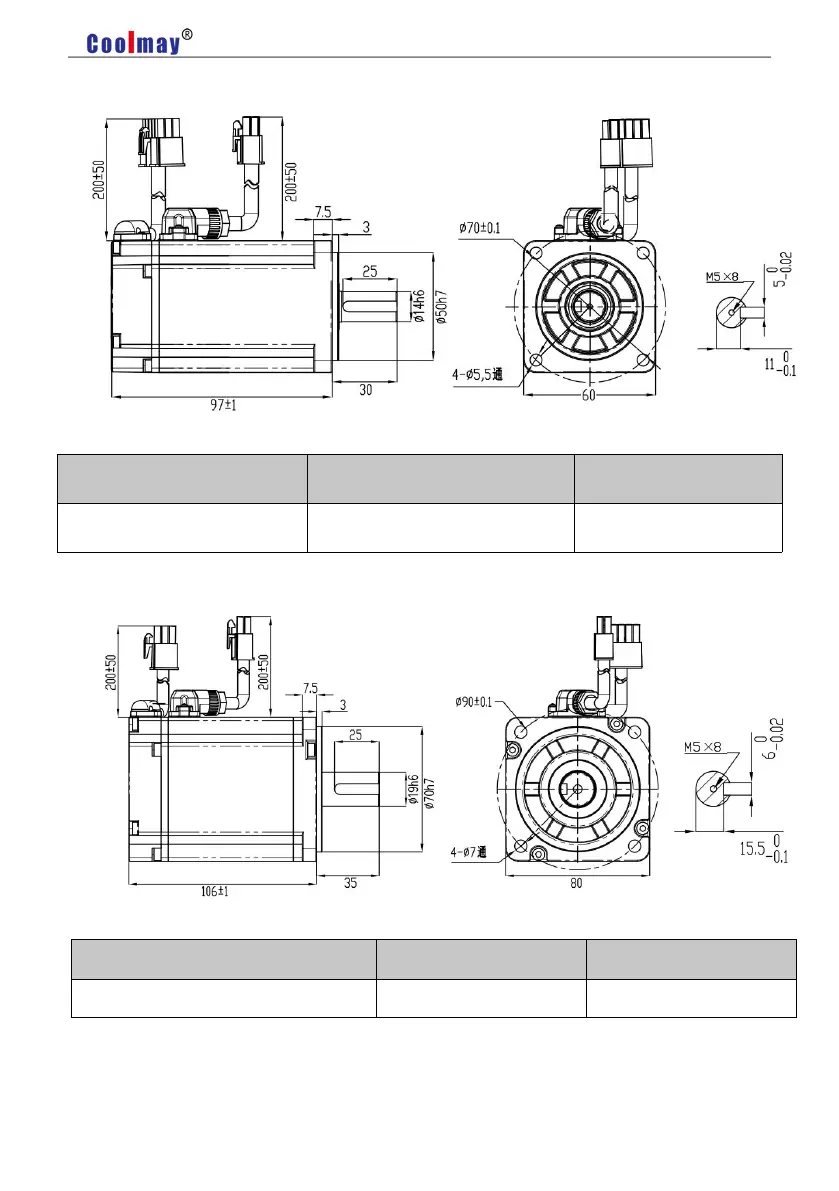

Pic 3.2 60 motor and tables 3-1
Model
CN7J-060430A3KUAA
CN7J-060430A3KVBA
L（mm)
98
136
● Installation dimensions of 80 base motor (see Figure 3.3 and table 3-2)
Pic 3.3 80 motor and tables 3-2
0
Model
CN7J-080830A3KUAA
HN7J-080830A3KVBA
L（mm)
107
147
