Chapter 1 Product Inspection And Installation
www.coolmay.com
2

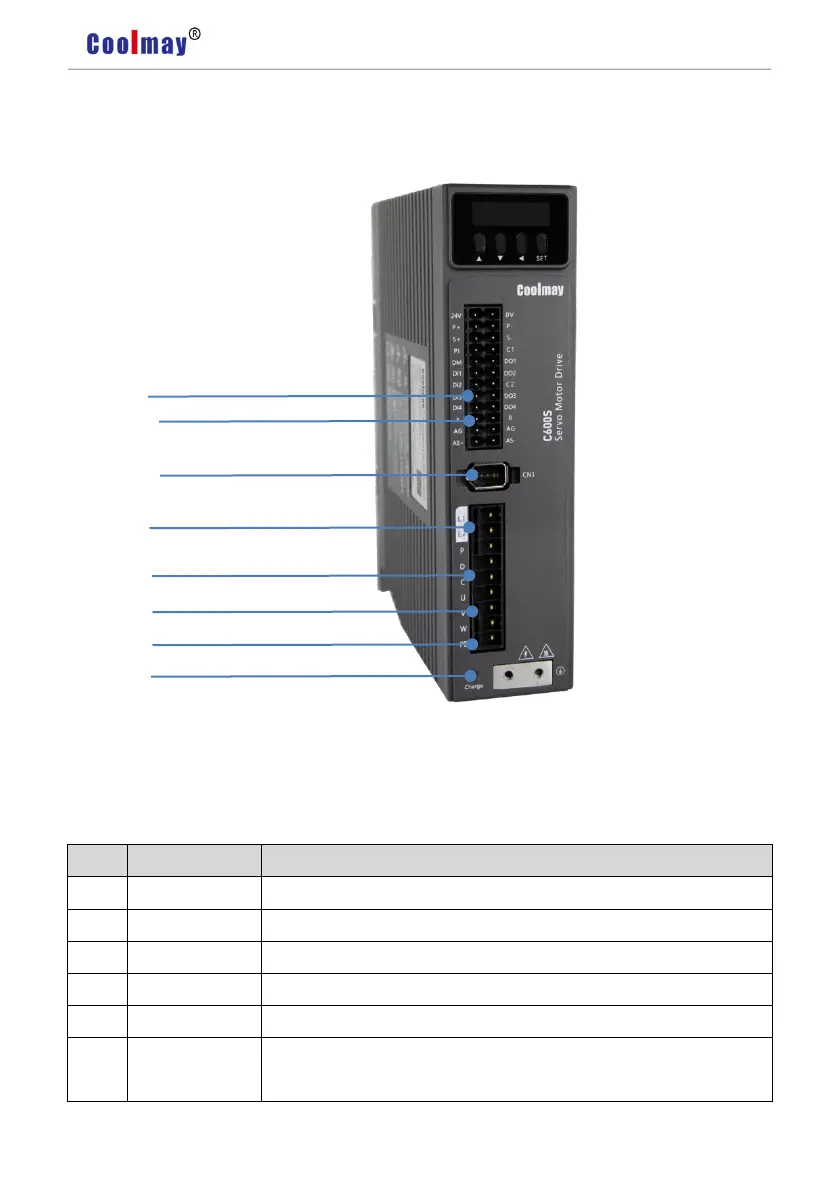

1.2 Product Front Panel
Applicable types
：
C600S-40，C600S-75
Pic 1.1
C600S
Front Panel Introduction
Item
Terminal
Introduction
①
/
Input and output control signal terminals, see silk screen for details.
②
A B
RS-485 communication terminal.
③
CN1
Encoder signal terminal, connected with motor encoder.
④
L1,L2
Main power input terminal.
⑤
P,D,C
Braking resistance connection terminal.
⑥
U,V,W
Servo motor connection terminal. Connect servo motor u, V and W
phases.
①
②
④
⑤
⑥
⑦
⑧
③
