Chapter 4 Drive System Wiring And Introduction
28

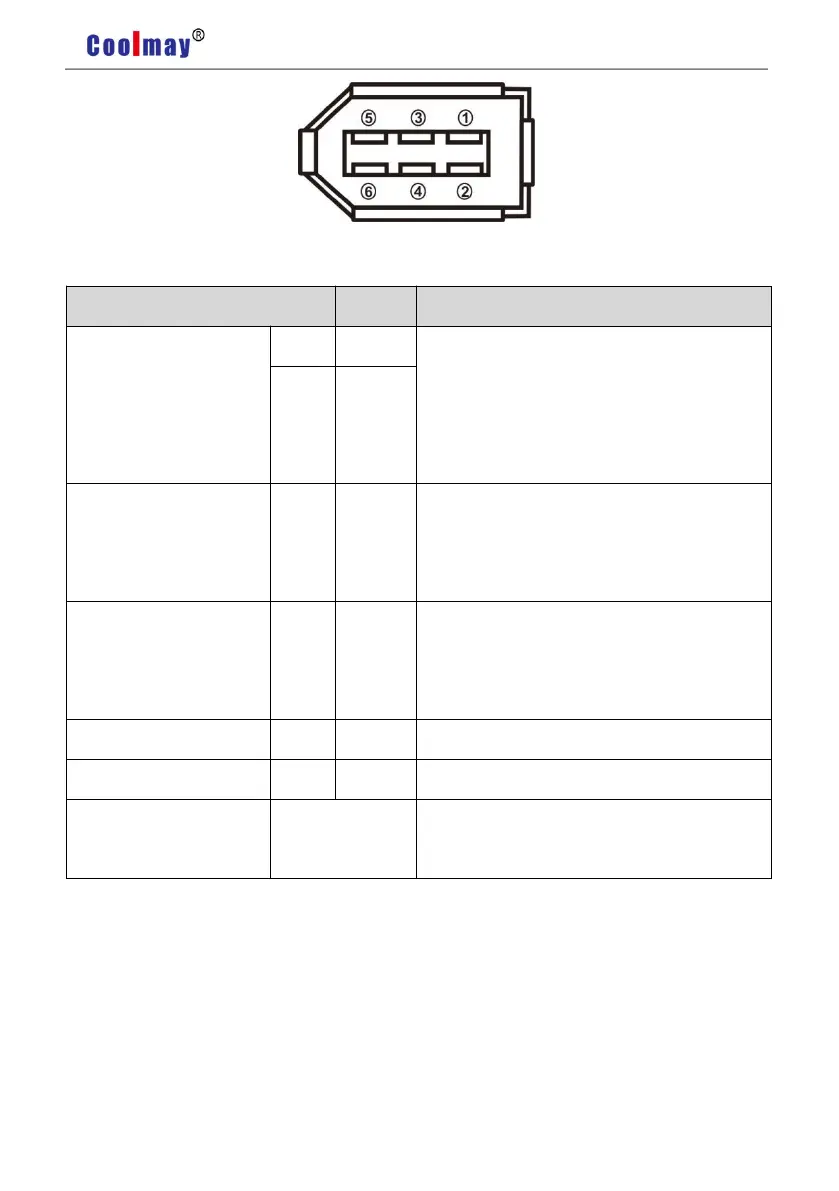

Pic 4.7 CN1 Incremental Encoder Signal Terminal
4.5.2 Terminal Signal Introduction
Signal Name
Pin No.
Introduction
Encoder Signal Power
Supply
5V
5
Use 5V power supply (Provided by servo driver).
If the cable is longer than 20m and prevent
encoder from voltage dropping down, it is better
to use multi wires or thick wires for power line
and ground line.
0V
6
Absolute value encoder
communication positive
terminal
SD+
1
Absolute value encoder communication
positive terminal
Absolute encoder
communication negative
terminal
SD-
2
Absolute encoder communication negative
terminal
Null
NC
3
retain
Null
NC
4
retain
Shielded wire protective
ground
Plug metal
housing
Connect to the shielded layer of the encoder cable
4.6 Anti-jamming Countermeasures of Power Wiring
To suppress interference, please take the following measures:
 Instruction input cable length should be less than 3 meters,and encoder cable should be less
than 20 meters.
 Recommend grounding cable over 2.0 mm²
 Please install a noise filter on the input side of the power cable to prevent radio frequency
interference.
 To avoid electromagnetic interfering, the followingmethods can be used:
