4.3 Main Circuit Terminal
4.3.1 Main Circuit Terminal Introduction

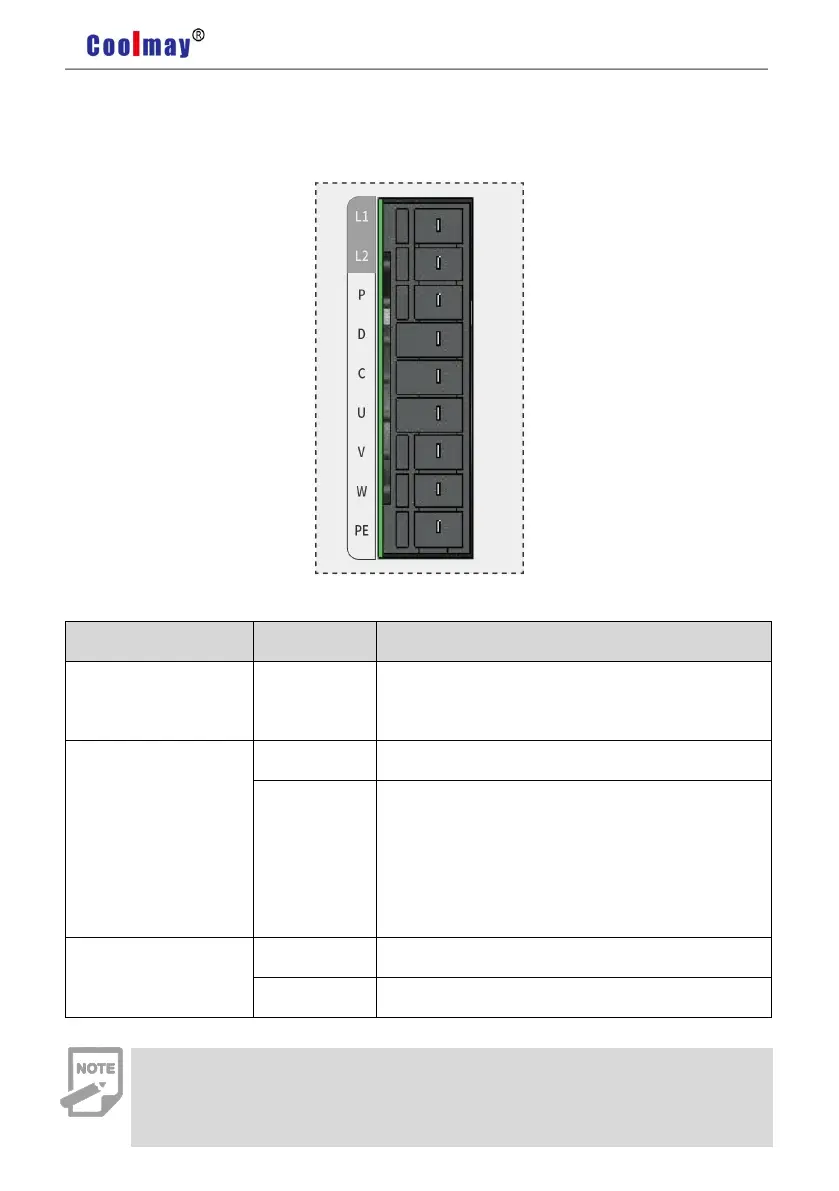

Pic 4.3 Main Circuit Terminal
Terminal Name
Symbol
Detailed Explanation
Main Power Supply
L1、L2
Connect to external AC power supply ,1 phase
220VAC -15%~+10%
，
50/60Hz.
Regenerative
Resistance
P、D
When use the built-in resistor,please connect P and D.
P、C
When using external braking resistor, P and D are
short circuited and disconnected, and then the
external braking resistor wiring is connected
between P and C respectively.
Servo Motor
U、V、W
UVW phase output to servo motor.
PE
Ground with servo motor and power supply.
 The built-in resistor has been set as default by factory: P and D connector are in
short-cut condition.
