Chapter 4 Drive System Wiring And Introduction
1） Install the upper device and a noise filter near the servo drive.
2） Install a surge suppressors on coils of relays, solenoids, electromagnetic contacts.
3） Separate high and low voltage cables away minimum at 30 cm.
4） Do not share a power supply with welding devices, discharge processing devices, etc. When
there is a high frequency generator nearby, please install a noise filter on the input side of the
power cable.
4.6.1 Wiring Examples Of Anti-Jamming And Ground Handling
1. Examples of anti-jamming wiring

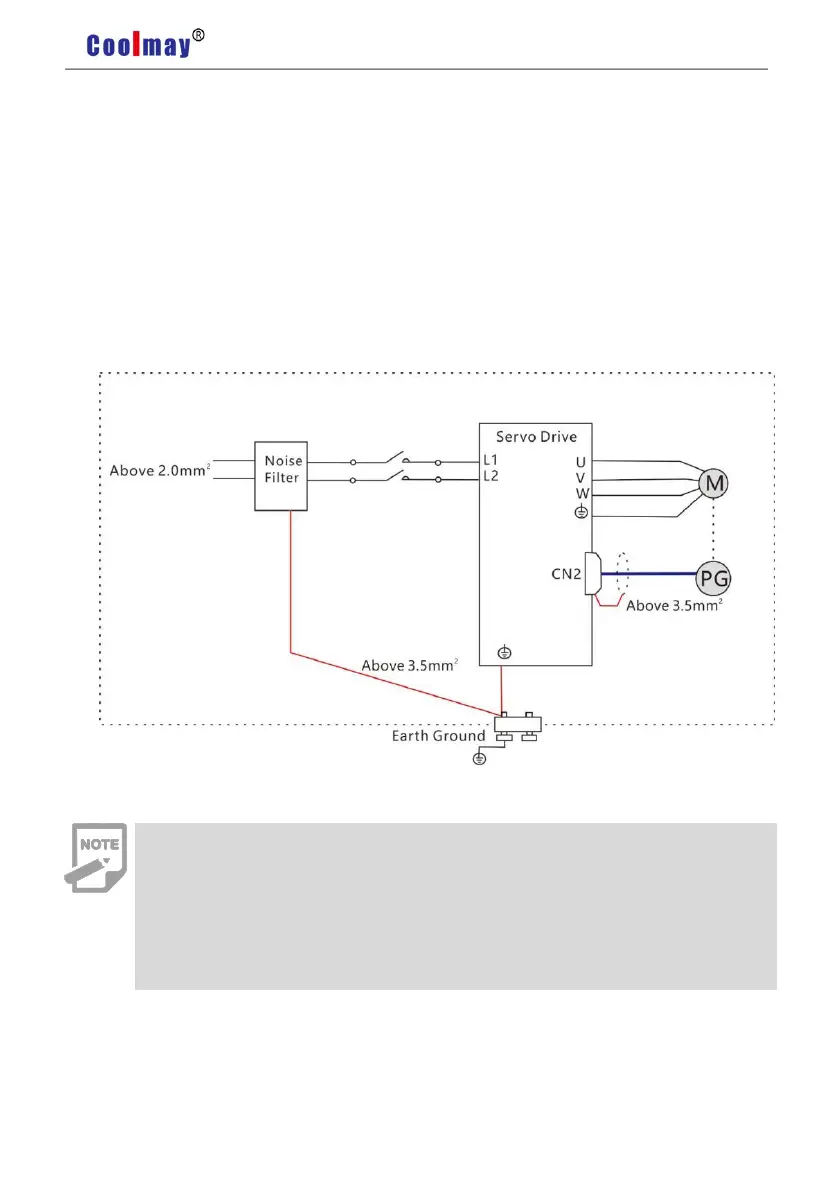

Pic 4.12 A Example Of Anti-Jamming Wiring
The outer box connecting wire for grounding shall be 3.5mm as
far as possible ² Braided copper wire is recommended for above thick
wires.。
When using the noise filter, please observe the precautions described
in the following " The use of the noise filter".
