Chapter 4 Drive System Wiring And Introduction
The ground wire of the noise filter is separated from its output power cord.

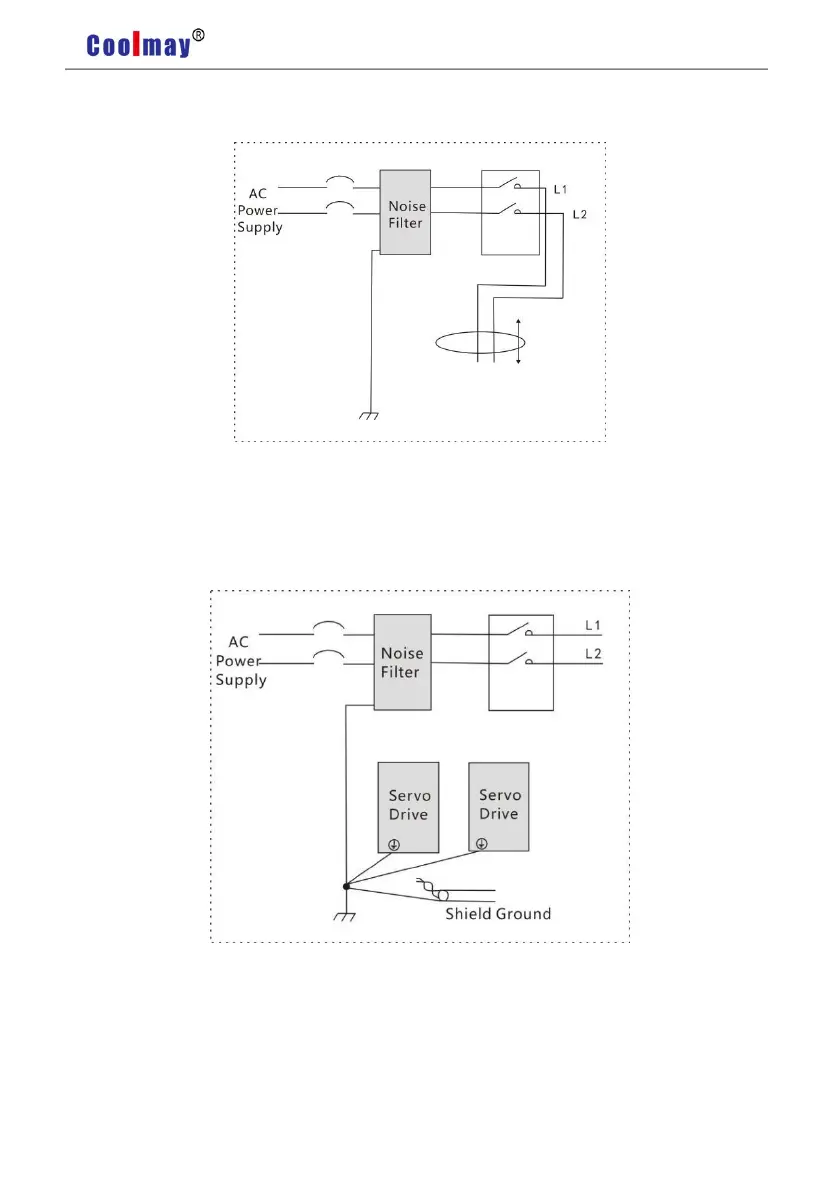

Pic 4.14 Diagram Of Separating Cables Between Ground And Output Line Of Noise Filter
Noise filters need to use a thick cable as short as possible to ground separately, and do not
share a ground wire with other grounding equipment.
Pic 4.15 Single Point Grounding Diagram
The ground handling of a noise filter installed in the control cabinet.
when the noise filter and servo driver are installed in the same control cabinet, it is
recommended that the filter and servo driver are fixed on the same metal plate. To ensure the
contact part is conductive and lapped well, and the metal plate is grounded.
