2AV/X
1-6-7
1-6

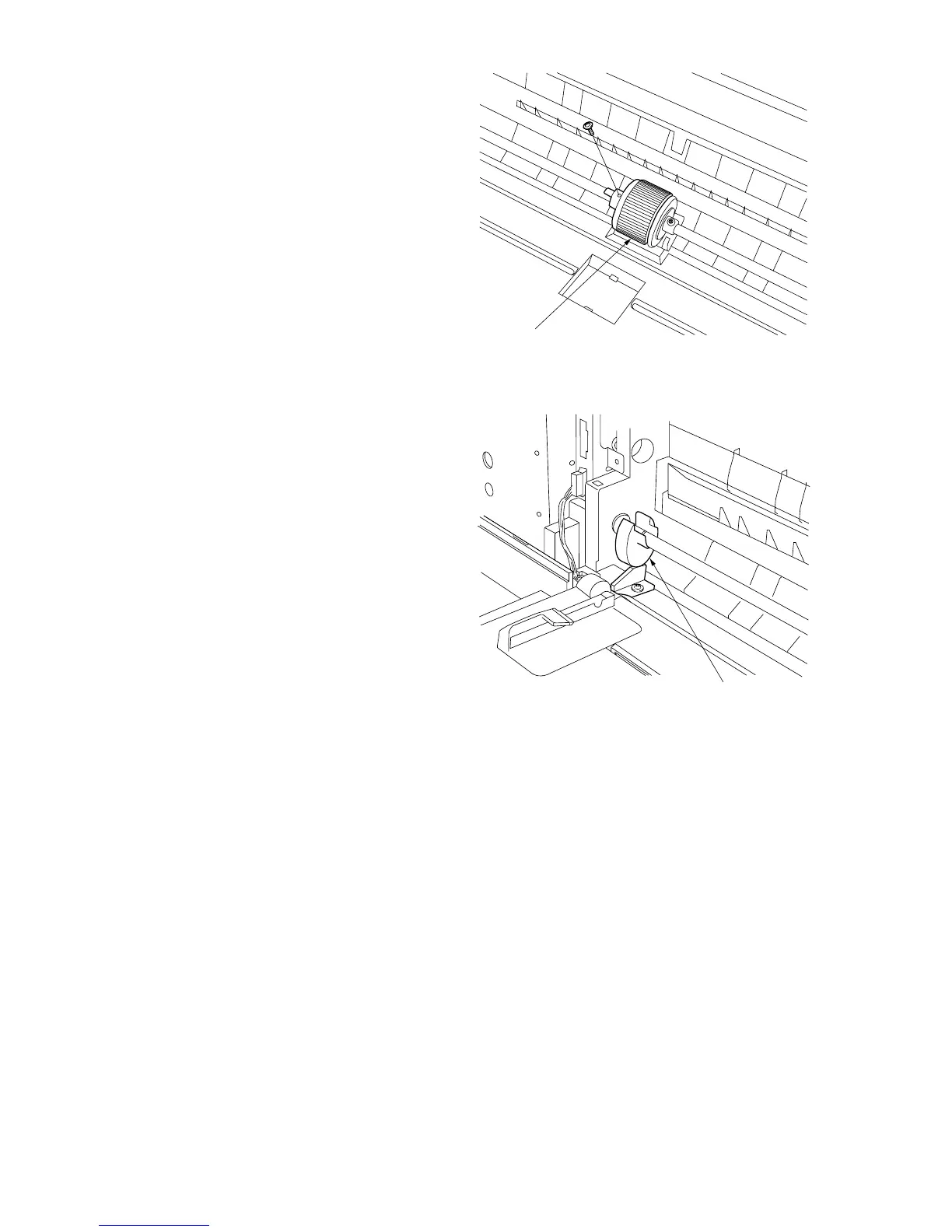

5. Remove the rear screw of the bypass paper
feed pulley and then the pulley.
Figure 1-6-12
6. Replace the bypass paper feed pulley and
refit all the removed parts.
• When refitting, check that the cam on the
rear of the shaft is correctly positioned (see
figure 1-6-13).
Figure 1-6-13
Bypass paper feed pulley
Cam
