2-1-6 Cleaning section
The cleaning section consists of the cleaning blade that removes residual toner from the drum surface after the transfer
process, and the cleaning spiral that carries the residual toner back to the waste toner tank.
Cleaning spiral
Lower cleaning seal
Drum
Cleaning blade

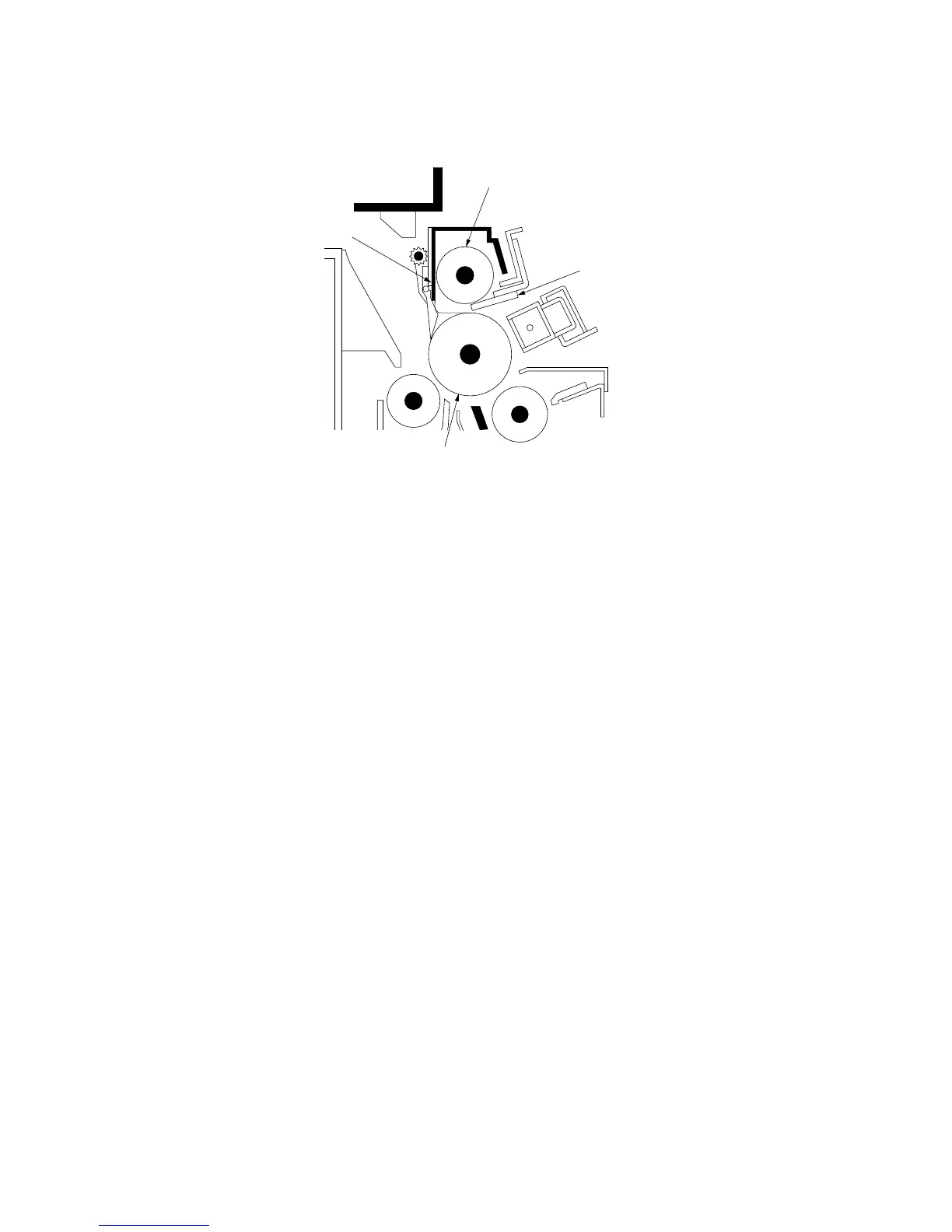

Figure 2-1-22 Cleaning section
