Copystar CS-2030 - Electrical Parts Layout

3A6
2-2-1
2-2-1 Electrical parts layout


3
1
2
6
47
5
Machine front Machine inside

Machine rear

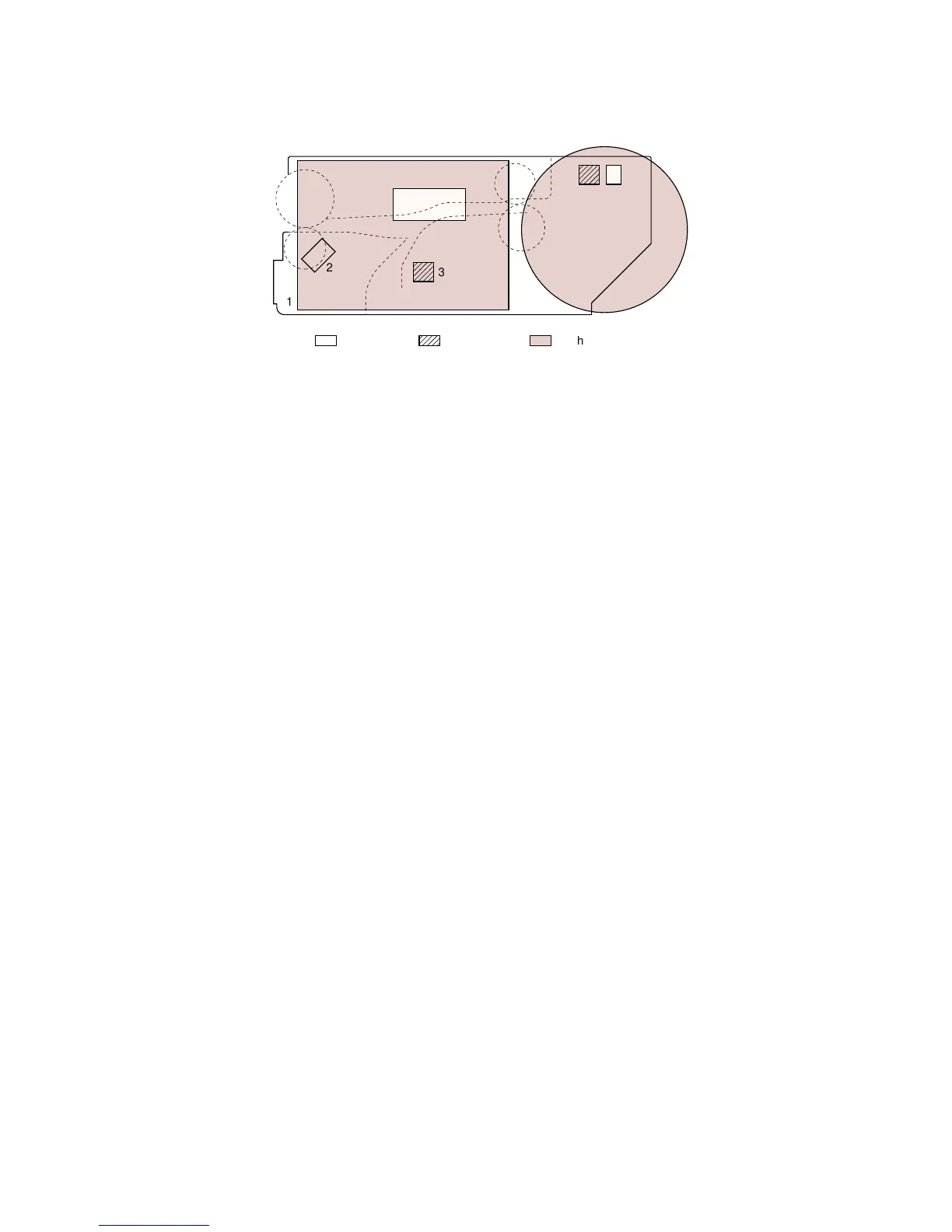

Figure 2-2-1 Feedshift unit
1. Motor driver PCB (MDPCB) ......................... Controls the feedshift motor.
2. Duplex open/close switch (DUPOCSW) ...... Detects if the duplex unit is opened/closed.
3. Feedshift eject switch (FSESW) .................. Detects a paper jam in the feedshift unit.
4. Ejected paper detection switch (EPDSW) ... Detects the presence of paper on the job separator tray.
5. Feedshift motor (FSM) ................................. Drives the feedshift section.
6. Feedshift solenoid (FSSOL) ........................ Operates the feedshift guide of the copier.
7. LED .............................................................. Indicates when the job separator tray is full.
