3BN/3A4
2-1-2

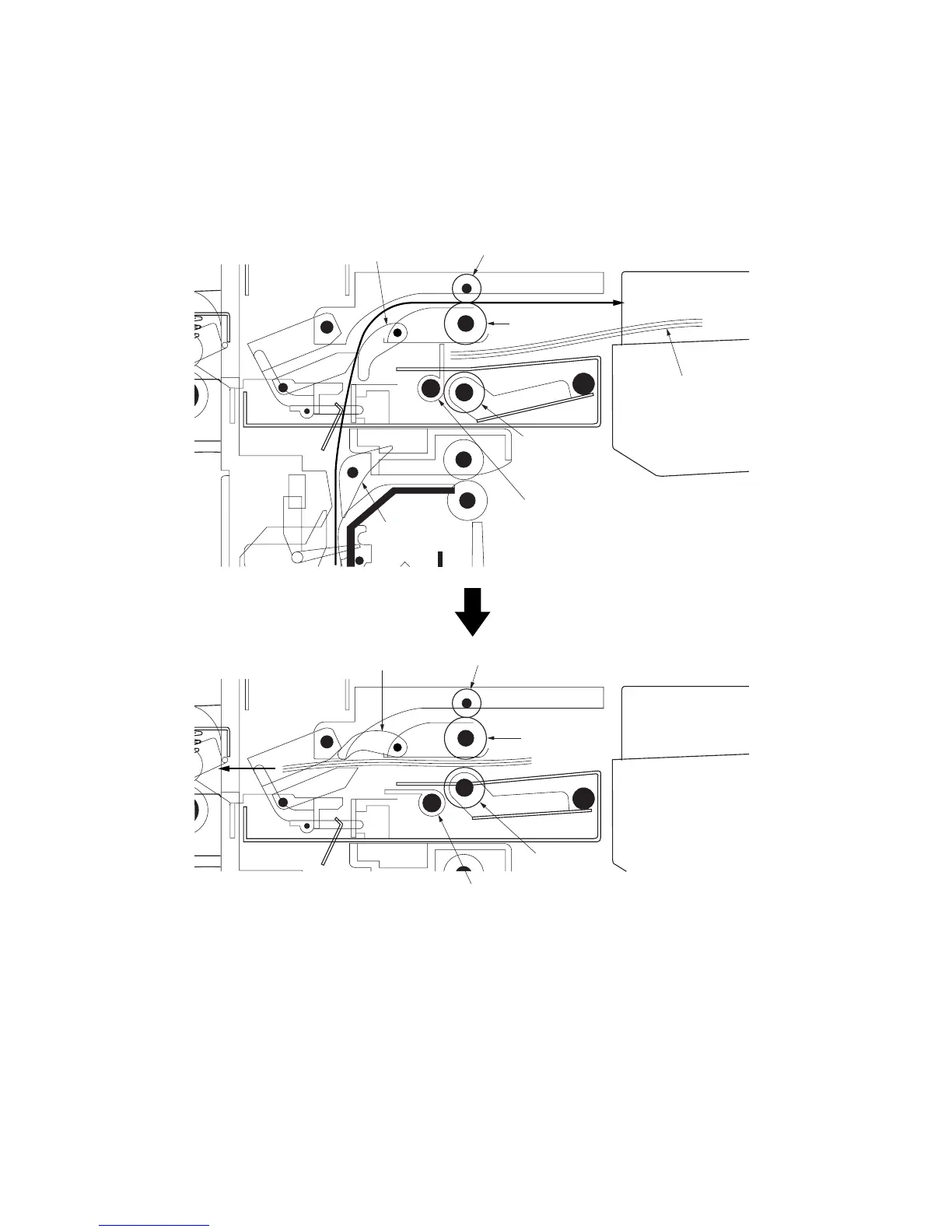

(1) Paper conveying operation in sort mode
When a copy is made in the sort mode, the feedshift solenoid (FSSOL) turns on and the feedshift guide of the copier
operates to switch the paper path to the feedshift section. The switchback solenoid (SBSOL) then turns on to lower the
separation claw and the paper is conveyed to the intermediate tray by the feedshift roller. When the trailing edge registration
cursor of the intermediate tray shifts the paper stocked in the intermediate tray to the stopper, the pickup solenoid (PUSOL)
turns on to lift the press roller and release the stopper, and the switchback solenoid (SBSOL) turns off to lift the feedshift
claw. The stack of paper on the intermediate tray is then ejected to the eject tray by the feedshift roller.
Stocked paper
Feedshift roller
Press roller
Stopper (PUSOL: OFF)
Stopper (PUSOL: ON)
Press roller
Feedshift roller
Feedshift pulley
Feedshift guide
(FSSOL: ON)
Feedshift pulley
Feedshift claw
(SBSOL: ON)
Feedshift claw
(SBSOL: OFF)
To intermediate tray
Figure 2-1-3
