Copystar CS-2030 - Switching the Paper Path

3A8
2-1-2
(1) Switching the paper path
If the job separator is selected for the copy eject location, when a copy is made, the feedshift solenoid (FSSOL) turns on and
the feedshift guide of the copier operates to switch the paper path to the job separator. The copied paper is conveyed to the
job separator and then ejected to the job separator tray.

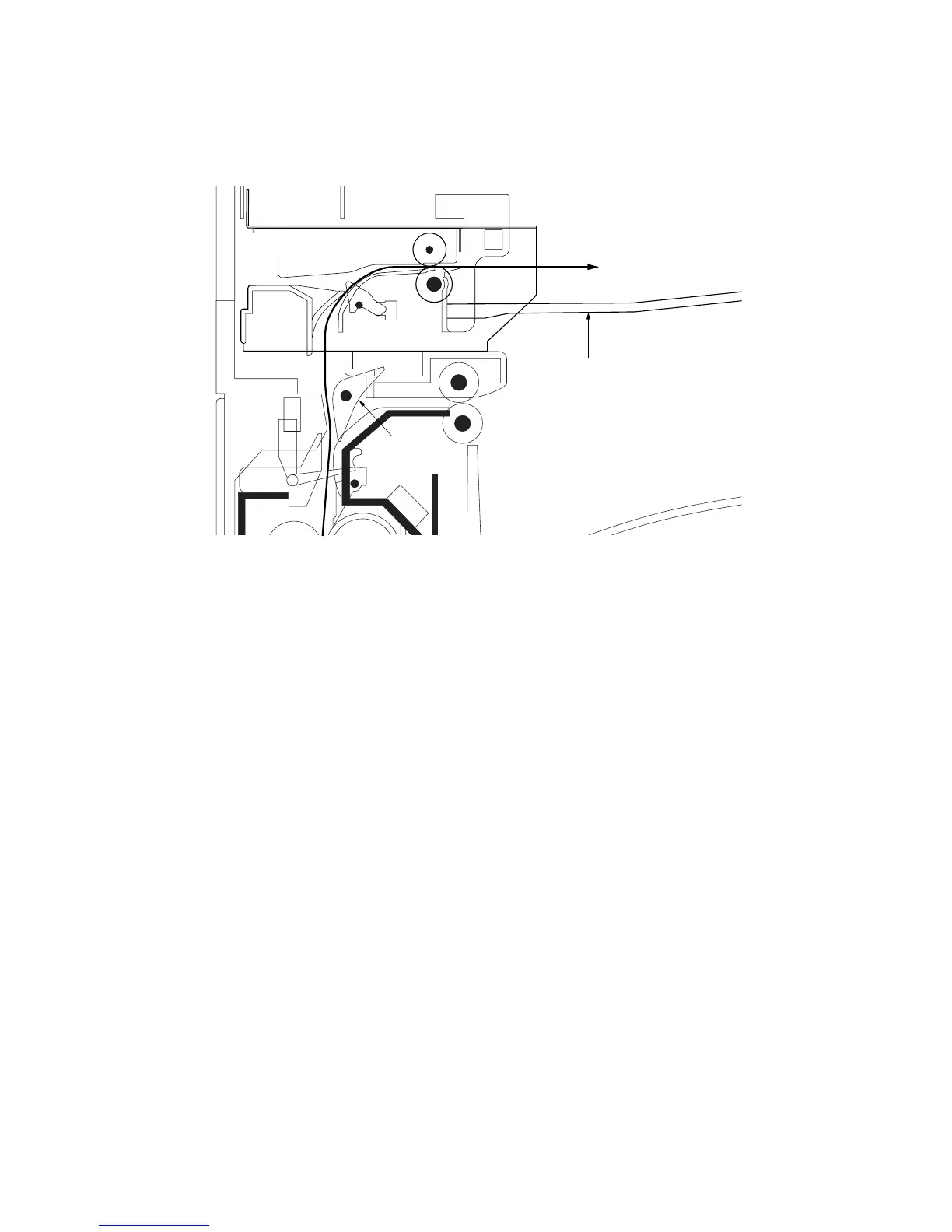

Figure 2-1-3
Job separator tray
Feedshift guide
(FSSOL: ON)
