Copystar CS-2030 - Paper Registration on the Intermediate Tray

3BN/3A4
2-1-5
(1) Paper registration on the intermediate tray
In sort mode, the front and rear side registration cursors move to the size of the paper used to even up the sides of the stack
of paper and the trailing edge registration cursor shifts the paper to the feedshift section.
In staple-sort mode, the front and rear side registration cursors even up the sides of the stack of paper and shift the stack
toward the machine front, and then the trailing edge registration cursor shifts the stack to the stapling position.

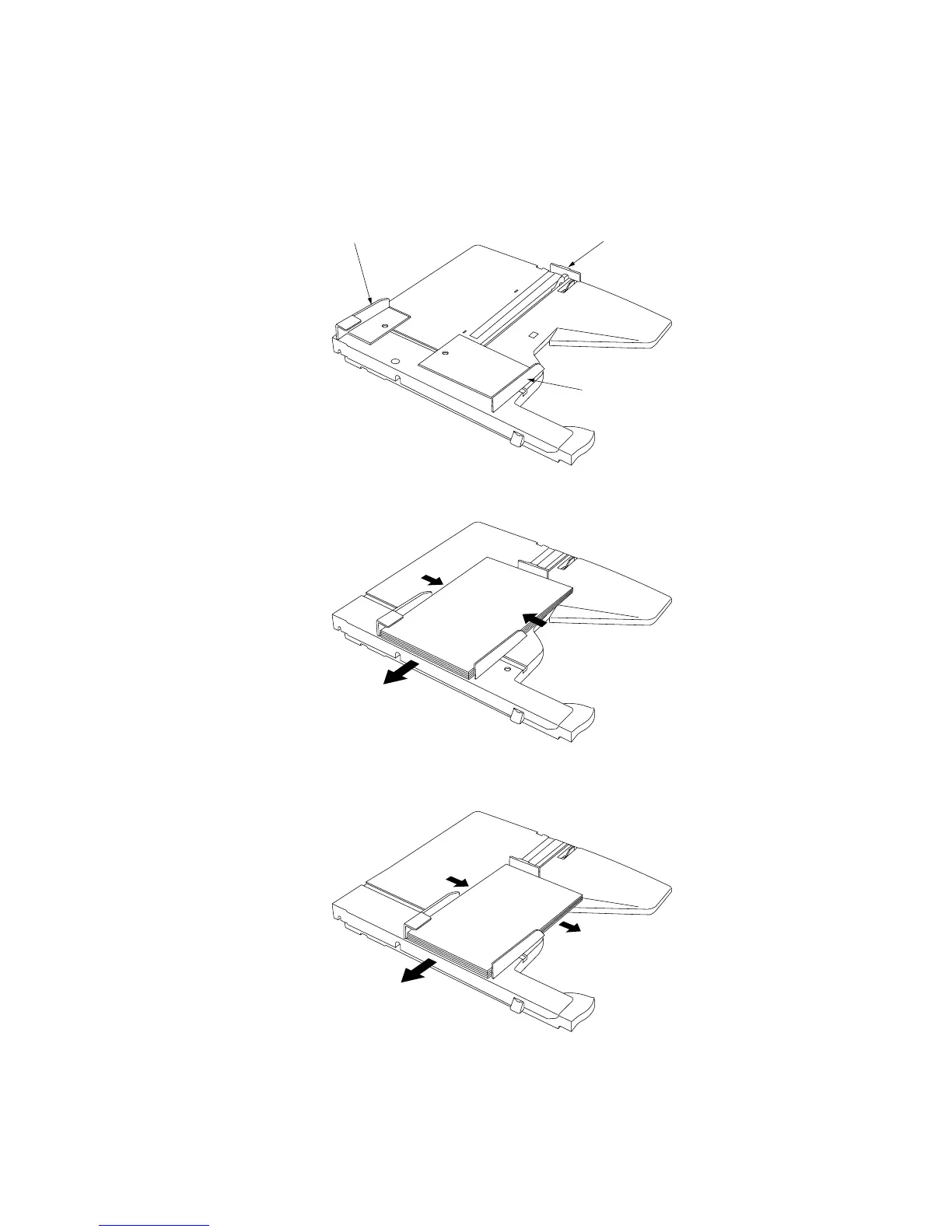

Figure 2-1-7
Trailing edge registration cursor
Rear side registration cursor
Front side
registration cursor
Home positions
Paper registration
Shifting the paper to
the stapling position
