2-1-1 Feedshift section
The feedshift section consists of the components shown in Figure 2-1-1. It switches the path for the paper conveyed from
the copier during duplex copying.
47 56
0
2
9
3
18

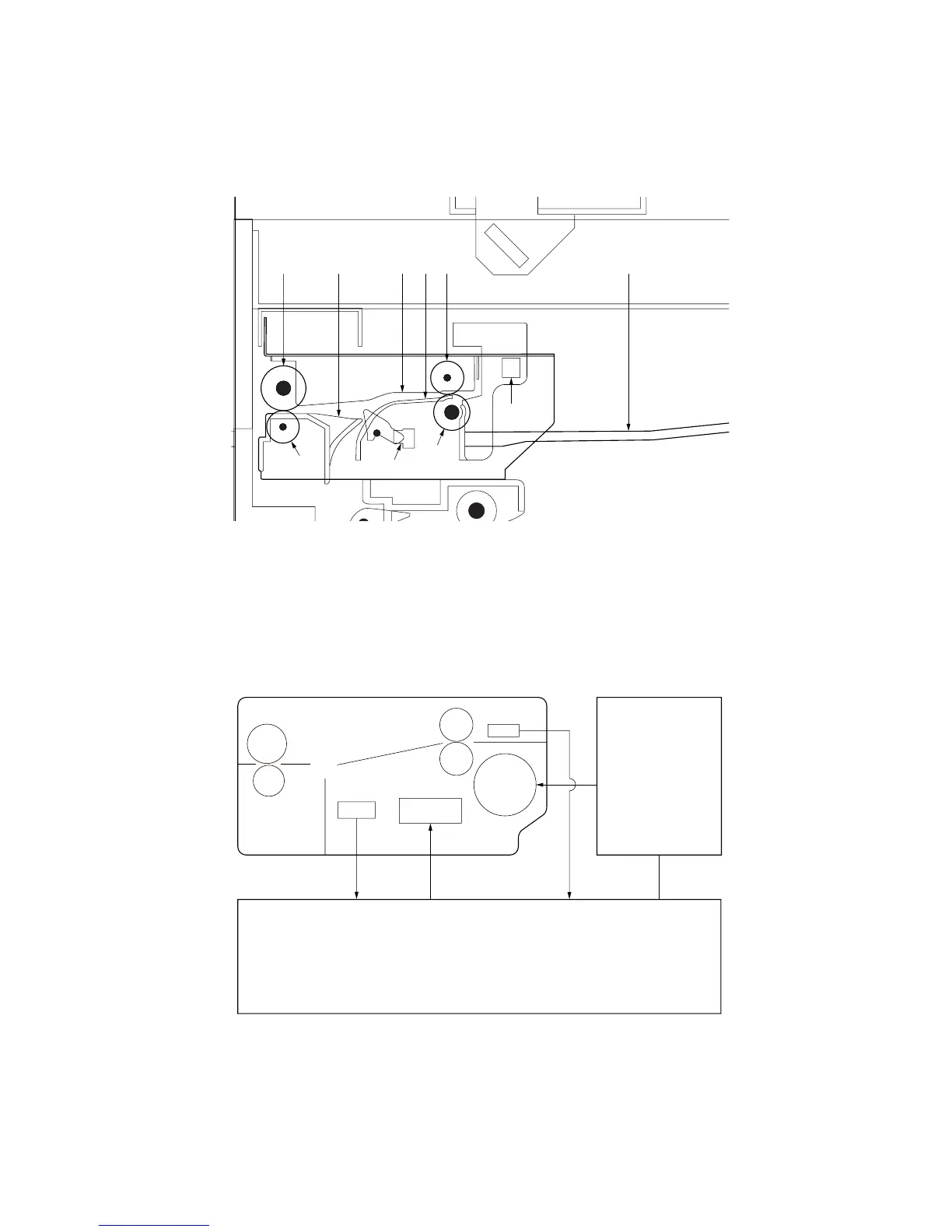

Figure 2-1-1 Feedshift section
1 Right eject pulley
2 Right eject roller
3 Left eject pulley
4 Left eject roller
5 Upper guide
6 Lower right guide
7 Lower left guide
8 Job separator tray
9 Feedshift eject switch (FSESW)
0 Ejected paper detection switch (EPDSW)
Figure 2-1-2 Feedshift section block diagram
FSESW
CN16-7
CN16-4, 5
CN6-13
CN18-1 –
CN18-10
CN1-1 –
CN1-10
FSSOL
EPDSW
FSM
MPCB (copier)
MDPCB
CN2-1 –
CN2-6
