3A6
2-1-2
(1) Paper conveying operation in the feedshift section
In duplex mode, when the reverse face of the paper is copied, the feedshift solenoid (FSSOL) turns on and the feedshift
guide of the copier operates to switch the paper path to the feedshift section. When the trailing edge of the paper passes the
paper conveying switch (PCSW), the feedshift motor (FSM) reverses, rotating the right eject roller in the reverse direction to
switch back the paper into the duplex unit.
If the job separator tray is selected for the copy eject location, copied paper is conveyed through the feedshift section to the
job separator tray without being switched back.

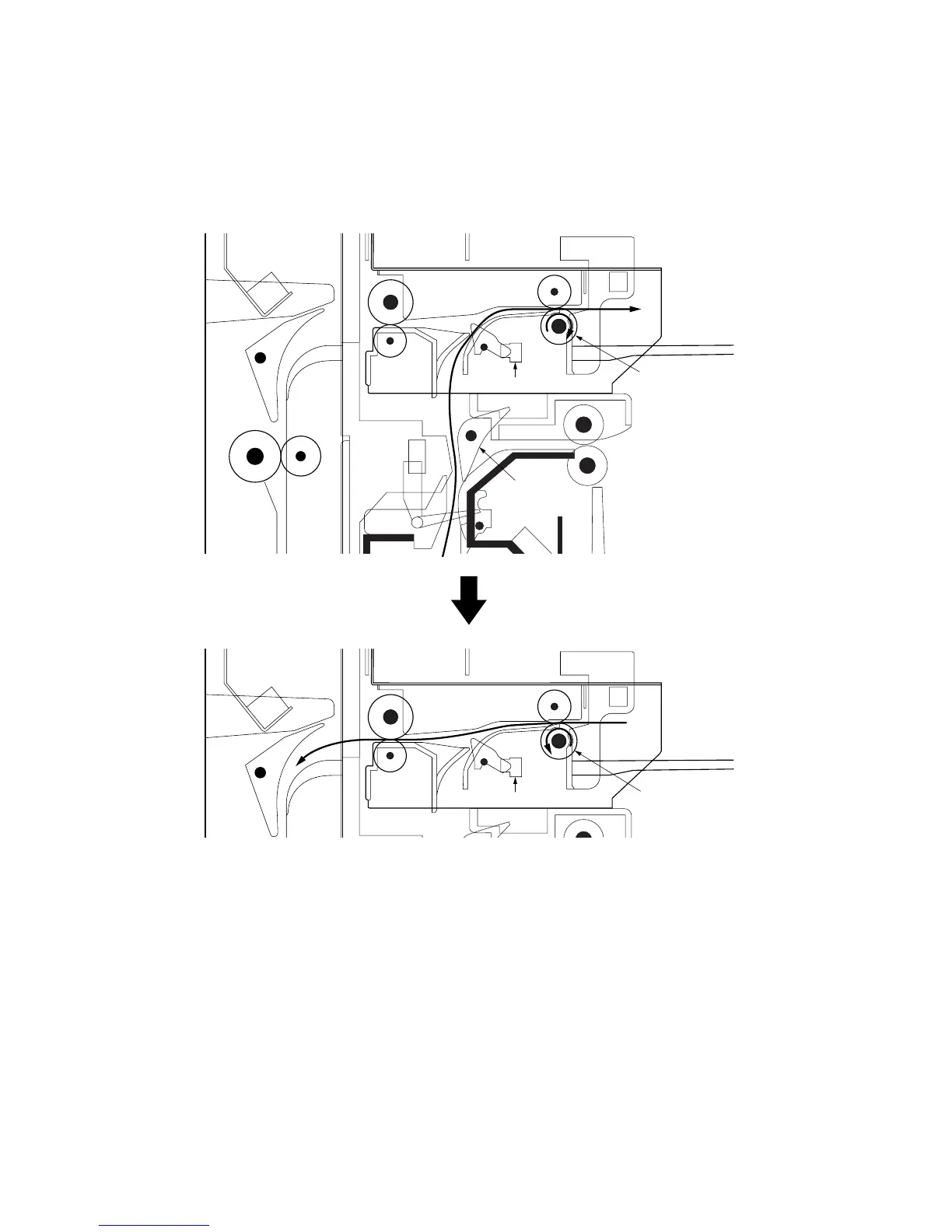

Figure 2-1-3
Right eject roller
(FSM: Fwd. rotation)
Feedshift guide
(FSSOL: ON)
PCSW: ON
Right eject roller
(FSM: Rev. rotation)
PCSW: OFF
