1-3-2
2AV/X
1-3

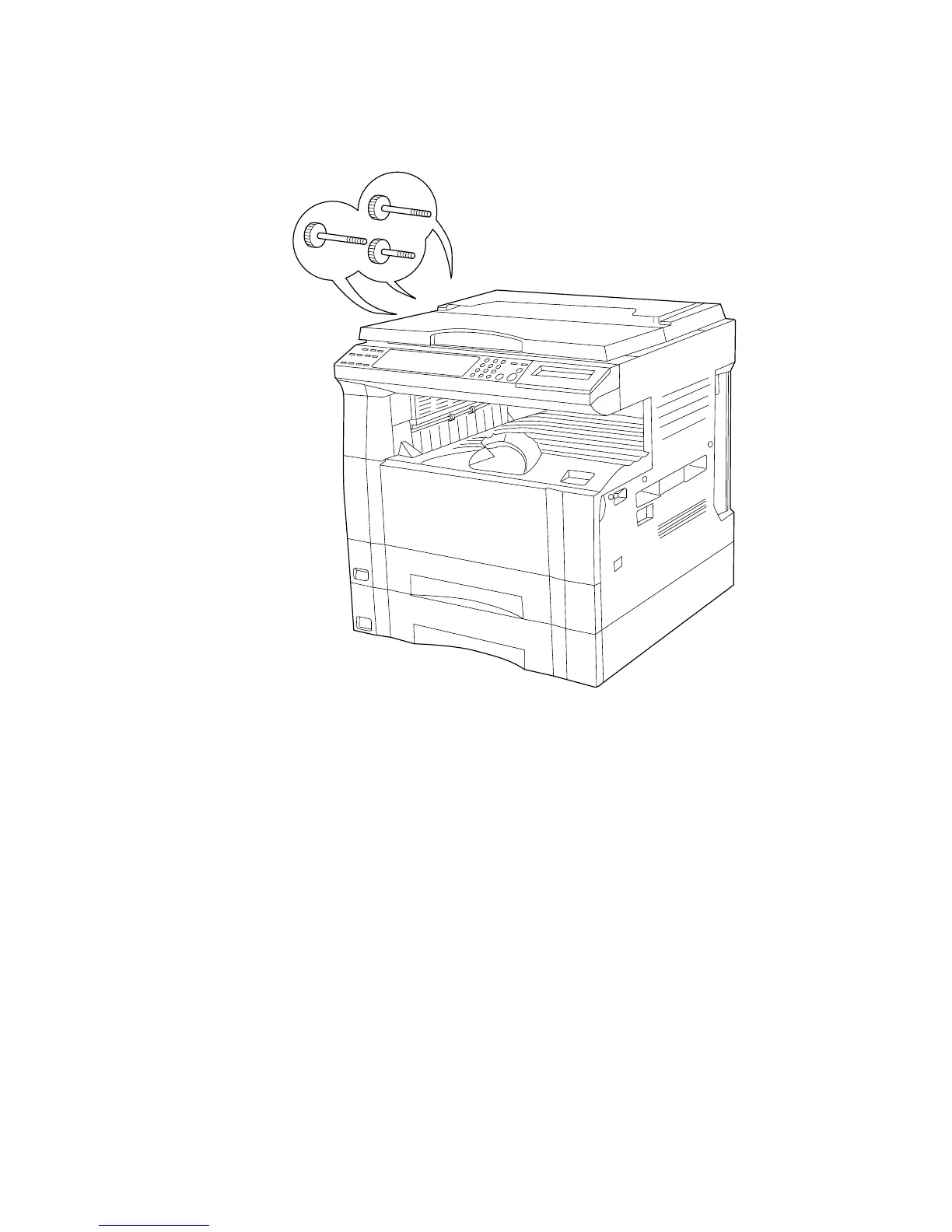

Light source unit 1 pins
*The diagram shows the 20 cpm copier.
*The original cover is standard for Asia and Oceania specifications for the 15 cpm copier only.
Light source unit 2 pin
Figure 1-3-1
