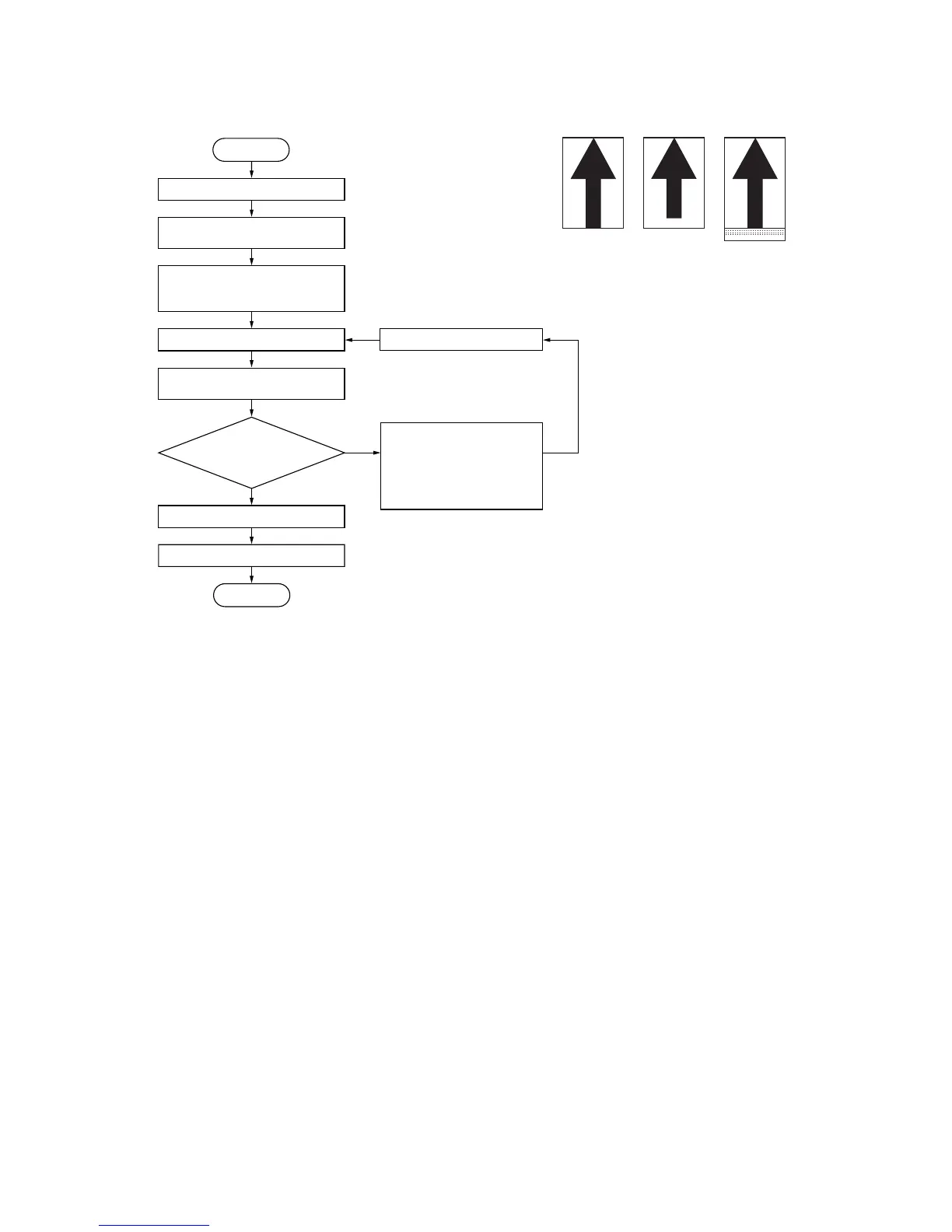

• 15 cpm copier
Figure 1-4-15
Original Copy
example 1
Copy
example 2
Enter maintenance mode.
Enter “071” using the numeric
keys and press the start key.
Yes
No
Start
End
• For copy example 1,
increase the value using
the zoom + key.
• For copy example 2,
decrease the value using
the zoom – key.
Press the interrupt key.
Exit maintenance mode.
Press the stop/clear key.
Place an original on the DF
and make a test copy.
Is the image correct?
Setting range: –32 to +32
Reference: 0
Changing the value by 1 moves
the copy image by 0.19 mm.
Increasing the value moves the trailing
edge of the copy image backward,
and decreasing it moves the trailing
edge of the image forward.
Press the start key.
The new setting is stored.
Light the copy exposure indicator
exp. 2 using the copy exposure
adjustment keys.
