3A7
1-4-14
• 15 cpm copier

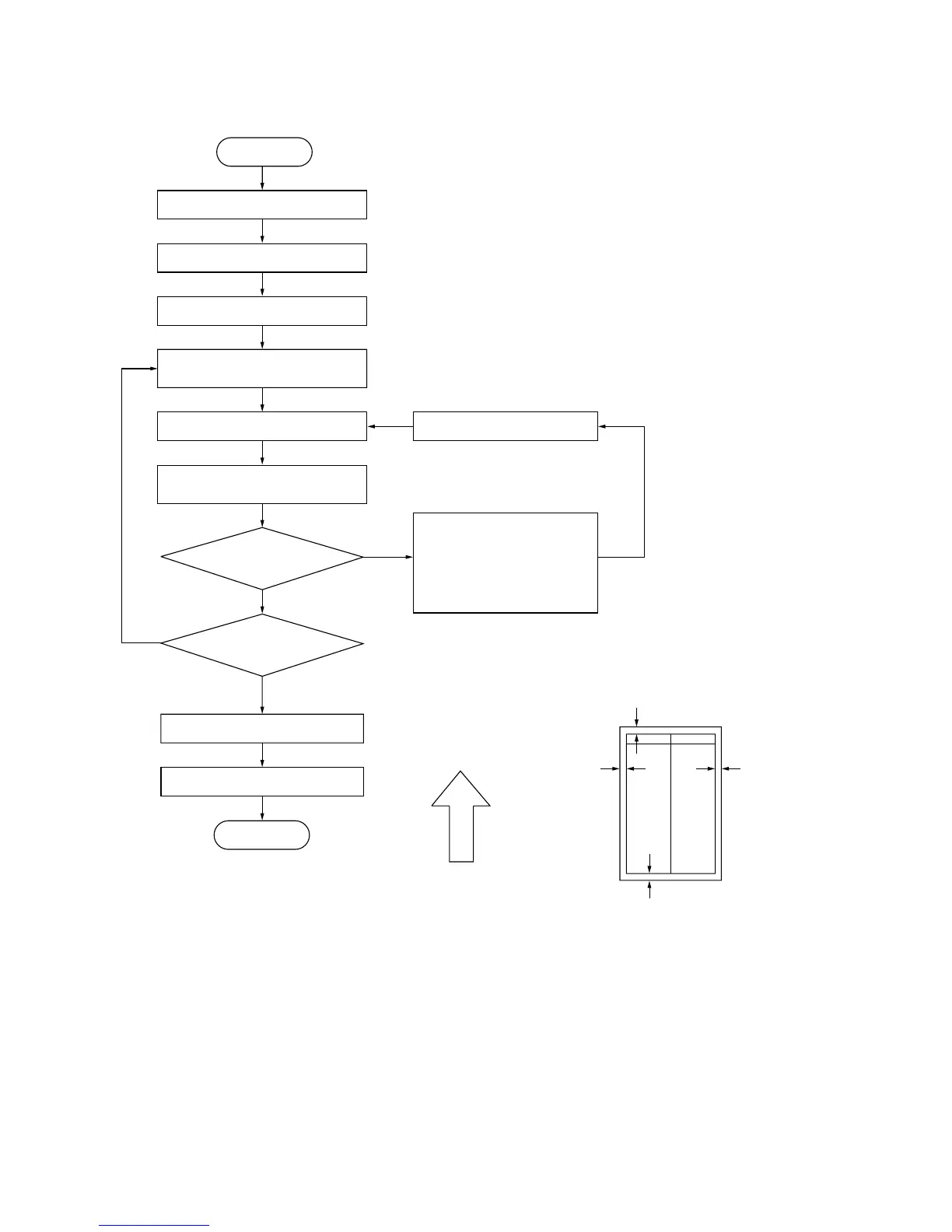

Figure 1-4-17
DF leading edge margin (3 ± 2.5 mm)
DF left margin
(2.5
+1.5
mm)
DF right margin
(2.5
+1.5
mm)
Ejection direction
(reference)
DF trailing edge margin
(3 ± 2.5 mm)
–2.0
–2.0
Change the setting.
• Increasing the value using the
zoom + key makes the margin
wider.
• Decreasing the value using the
zoom – key makes the margin
narrower.
Adjustment items (copy exposure indicator)
Exp. 1: DF left margin
Exp. 2: DF leading edge margin
Exp. 3: DF right margin
Exp. 4: DF trailing edge margin
Yes
No
Start
Enter maintenance mode.
Enter “404” using the numeric keys.
Press the start key.
Place an original on the DF
and make a test copy.
Press the start key.
The new setting is stored.
Setting range (default)
DF left margin: 0.0 to 10.0 (2)
DF leading edge margin: 0.0 to 10.0 (3)
DF right margin: 0.0 to 10.0 (2)
DF trailing edge margin: 0.0 to 10.0 (2)
Changing the value by 1 moves
the margin by 0.5 mm for all.
Are the margins correct?
Press the interrupt key.
Select the item to be adjusted using
the copy exposure adjustment keys.
Yes
No
Proceed to another mode?
Press the stop/clear key.
Exit maintenance mode.
End
