Copystar CS-2030 - Page 392

3BN/3A4
1-2-2
1
2
%
⁄
¤
8
(
$
^
‹
4
)
$
%
(
7
6
¤
&
35
90!
@#*

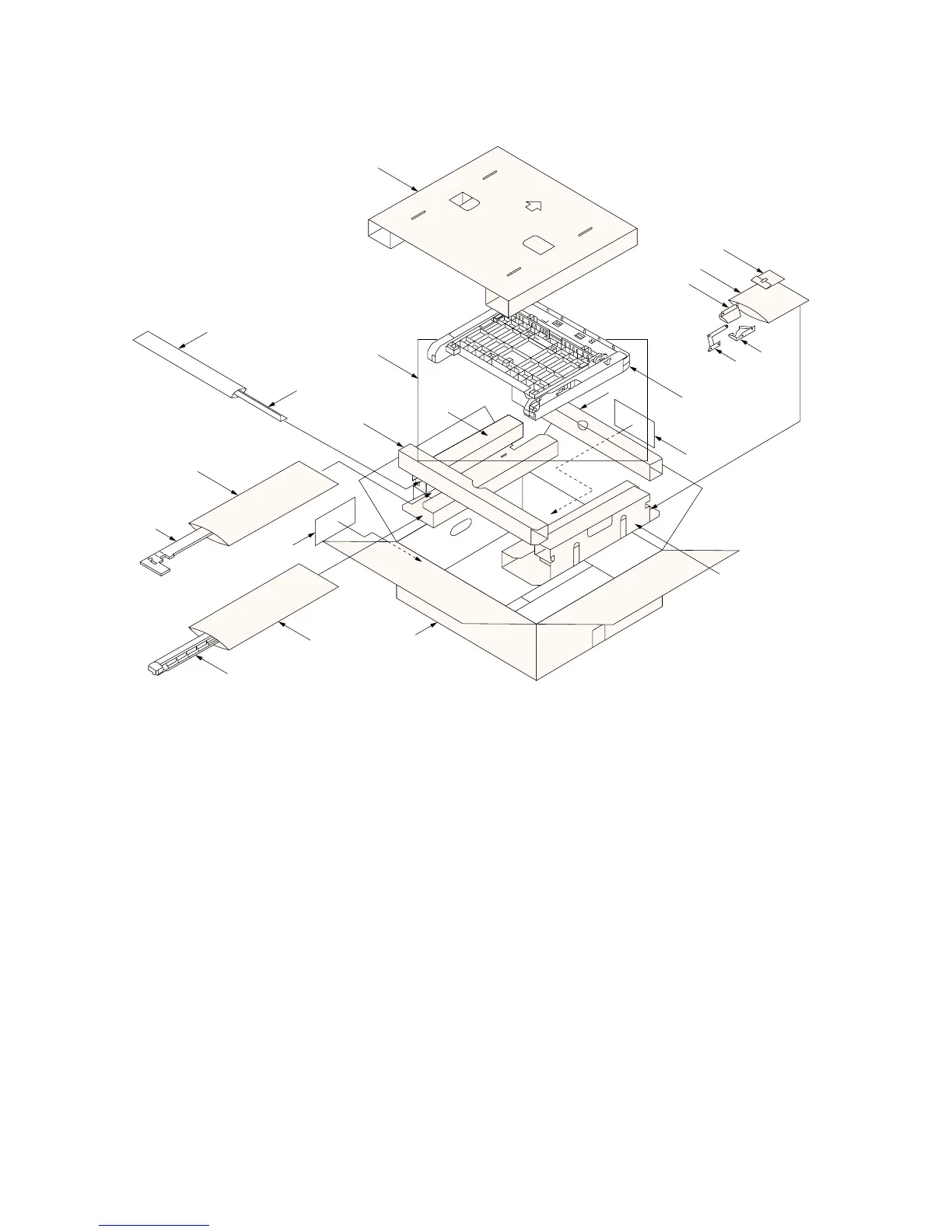

Figure 1-2-2 Unpacking (duplex unit)
1 Duplex unit
2 Duplex joint
3 Front duplex fulcrum plate
4 Rear duplex fulcrum plate
5 Front fulcrum hook
6 Duplex stopper
7 Left cover
8 Entry guide
9 Two (2) stoppers 5
0 Seven (7) cross-head chrome binding screws
M3 × 14
! One (1) cross-head chrome TP-A screw M3 × 05
@ One (1) cross-head tap-tight P chrome TP-A screw
M3 × 08
# One (1) cross-head tap-tight P chrome TP-A screw
M4 × 12
$ Bottom pads
% Spacers
^ Upper pad
& Outer case
* Plastic bag
( Plastic bag
) Product cover
⁄ Air-padded bag
¤ Bar-code label
‹ Air-padded bag
