Copystar CS-3035 - Parts Names and Their Functions

2FD/2FF/2FG-3.0
1-1-3
1-1-2 Parts names and their functions
(1) Copier

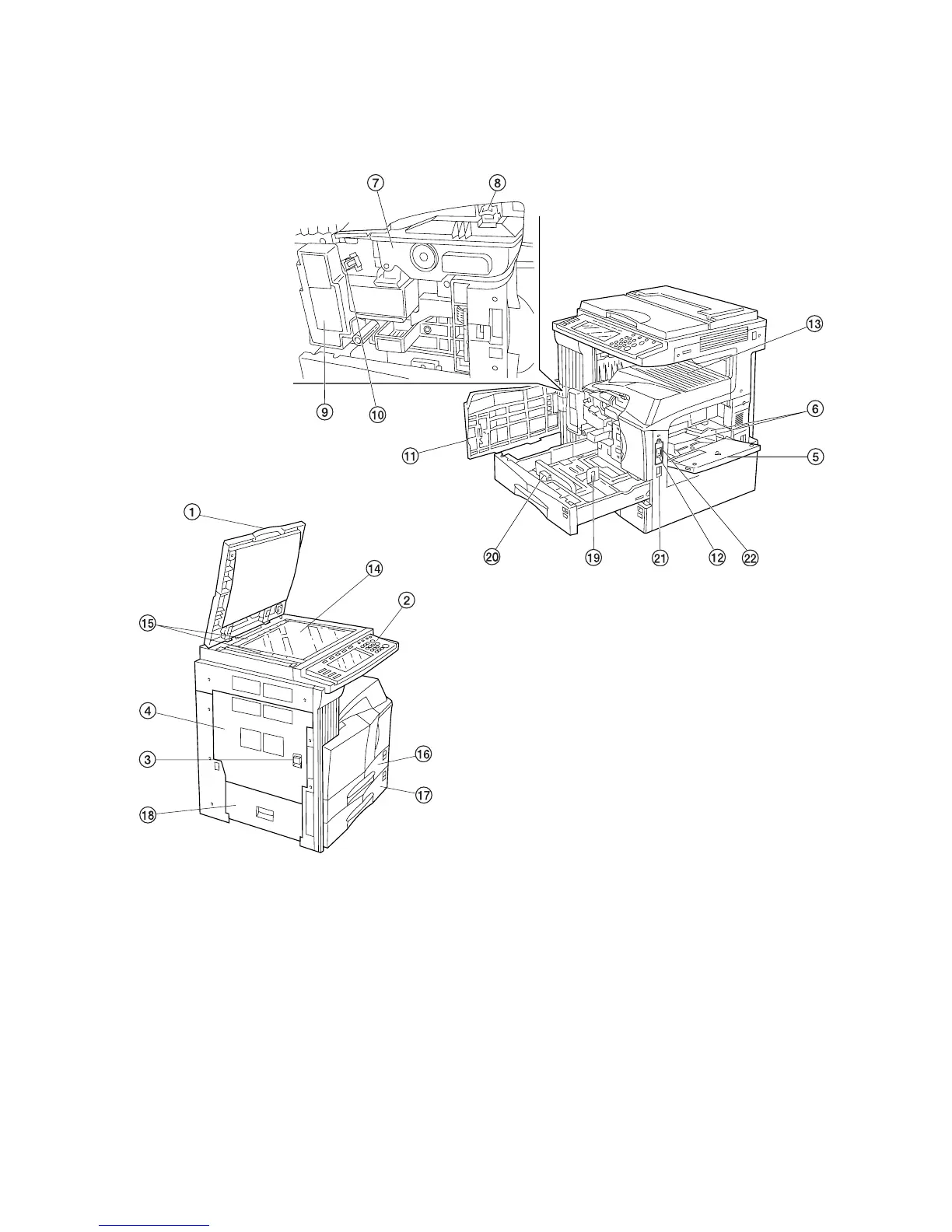

Figure 1-1-1
1 Original cover
2 Operation panel
3 Conveying cover handle
4 Conveying cover
5 Bypass tray
6 Insert guides
7 Toner container
8 Toner container release lever
9 Toner disposal tank
0 Cleaning shaft
! Front cover
@ Main power switch
# Copy store section
$ Platen
% Original size scales
^ Upper drawer
& Lower drawer
* Side cover
( Length adjustment plate
) Width adjustment lever
⁄ Handles for transport
¤ Main power switch cover*
*: Only for metric specifications.
