5FF
1-3-1
1-3-1 Paper misfeed detection
(1) Paper misfeed indication
When a paper jam occurs, the machine immediately stops operation. The operation unit of the copier shows a jam message
and the jam location.
To reset the paper misfeed detection, open and close the deck side cover or the large paper deck to turn the side cover
switch or the deck open/closed safety switch off and on.
(2) Paper misfeed detection conditions
PFCL1 PFCL2
PPSENS1
FCL3
FSW3
PPSENS3
PPSENS2

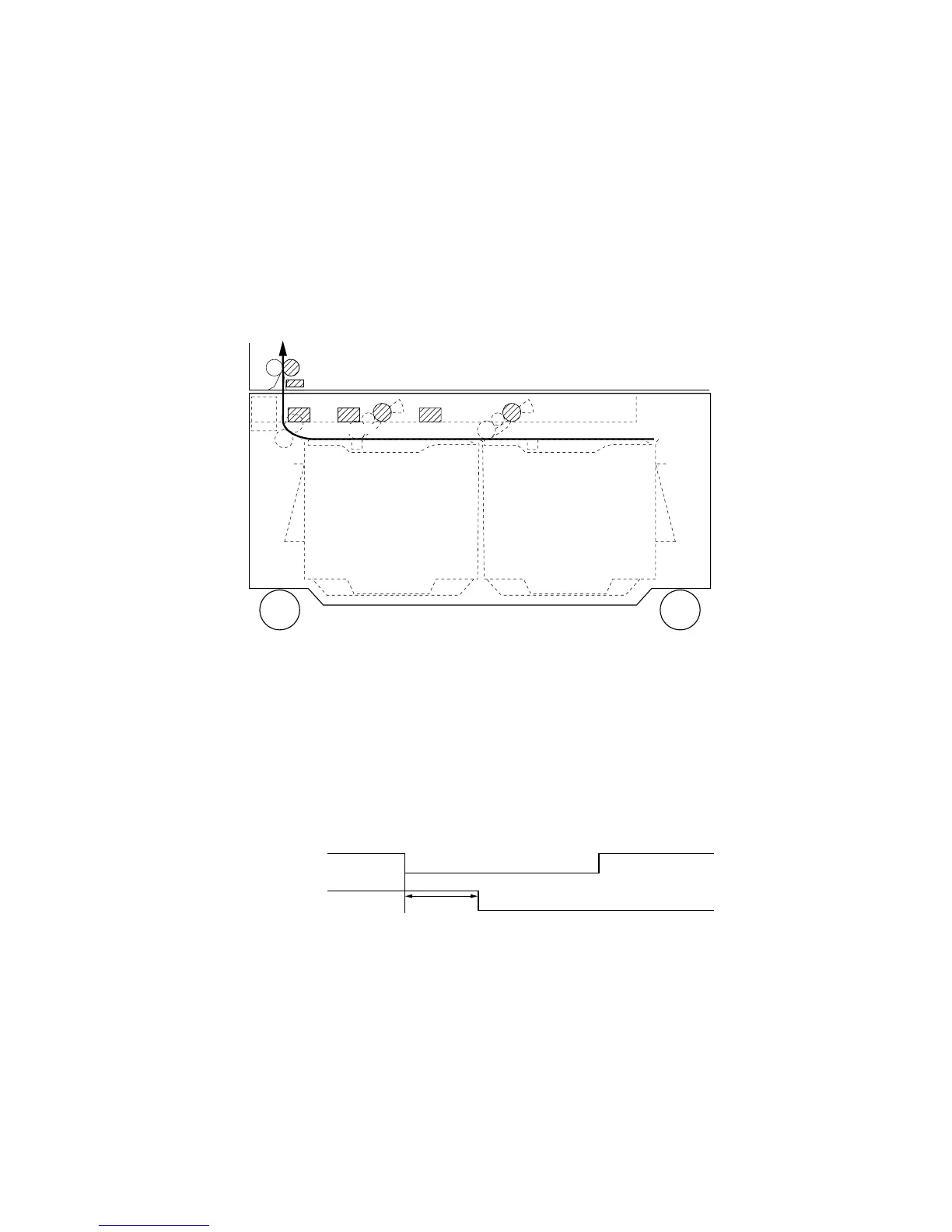

Figure 1-3-1 Large paper deck
• No paper feed from large paper deck (jam code 12)
Feed switch 3 (FSW3) of the copier does not turn on within 650 ms of paper feed clutch 1 (PFCL1) turning on.
650 ms
PFCL1
FSW3 (Copier)
Timing chart 1-3-1
