1-3-1 Paper misfeed detection
(1) Paper misfeed indication
When paper jams, the machine immediately stops operation and the occurrence of a paper jam is indicated on the copier
operation panel.
To remove the jammed paper, raise the switchback unit open/close lever and open the switchback unit.
To reset the paper misfeed detection, open and close the switchback unit to turn the switchback unit safty switch off and on.

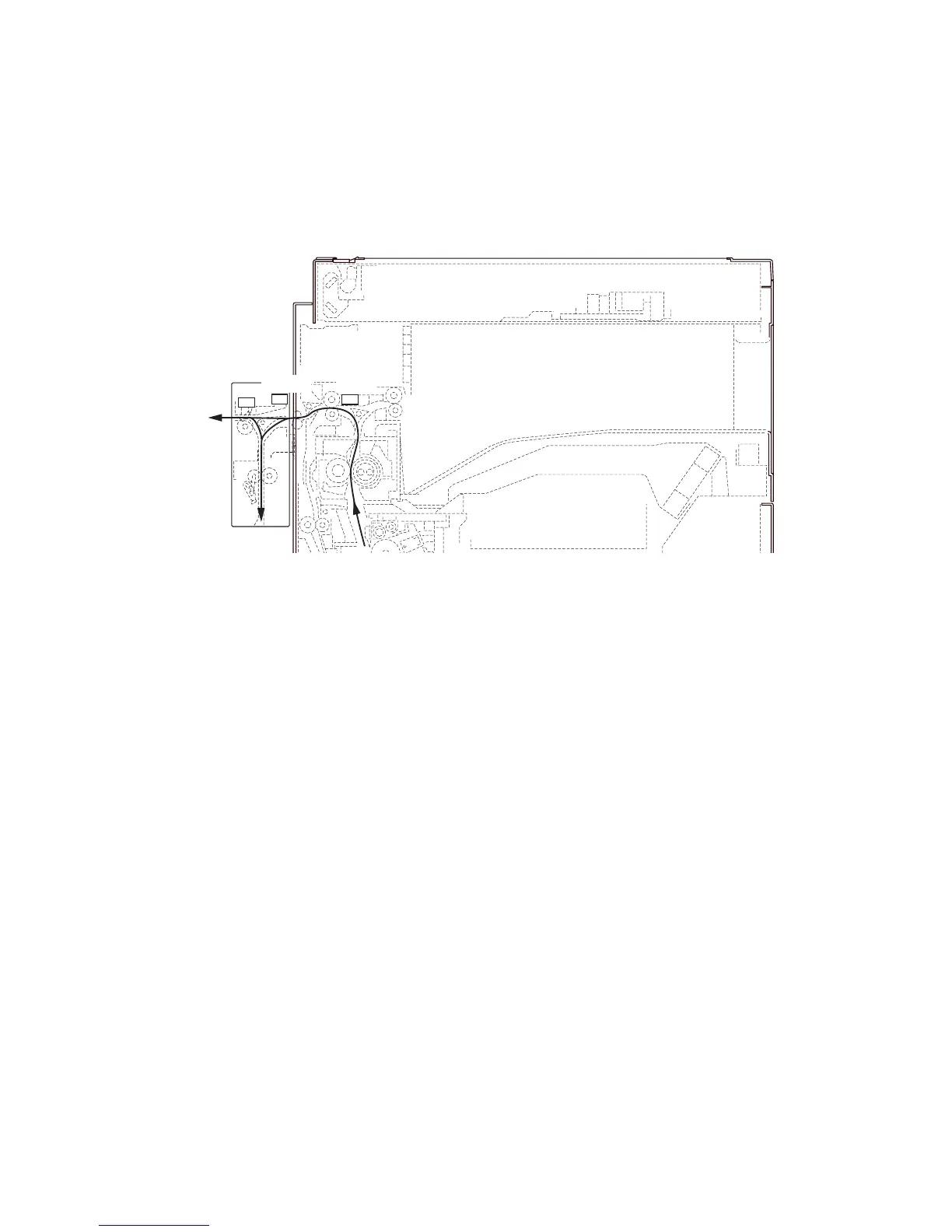

Figure 1-3-1 Paper misfeed detection
FSSW
SBESW
SBFISW
