Copystar CS-3035 - Switches and Solenoids

3CP
2-2-2
(2) Switches and solenoids

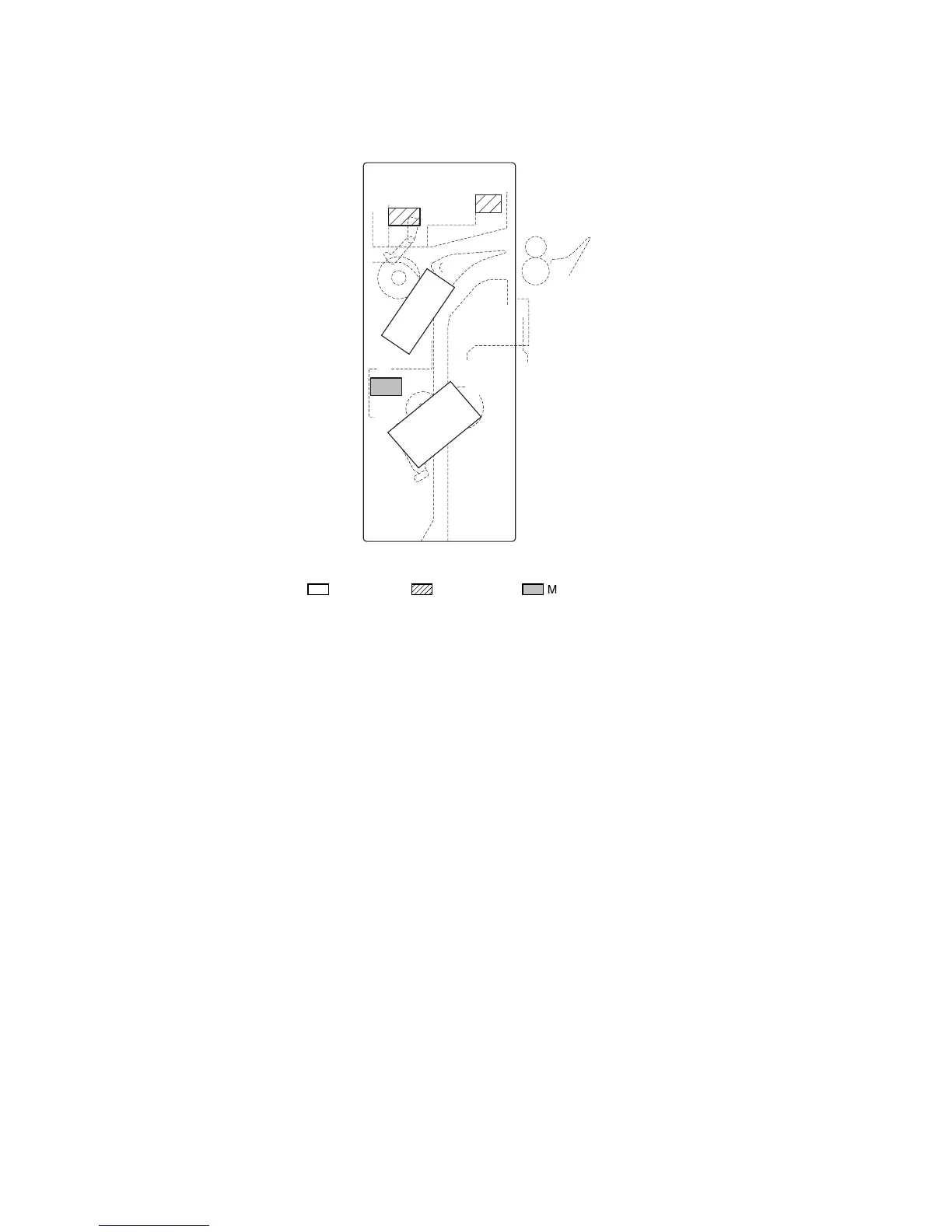

Figure 2-2-2 Switches and solenoids
1. Safty switch (SSW) ...................................... Breaks the safty circuit when the switchback unit is opened.
2. Switchback feed in switch (SBFISW) ........... Detects the presence of paper in the switchback unit.
3. Switchback eject switch (SBESW) ............... Detects a paper misfeed in the switchback unit.
4. Feedshift solenoid (FSSOL) ........................ Operates the feedshift guide.
5. Press solenoid (PRSOL) .............................. Operates the switchback press solenoid.
3
1
4
5
2
Machine front Machine inside
;
Machine rear
